Shining 3D FreeScan Combo+

Name: Shining 3D FreeScan Combo+
Brand: Shining 3D
SKU: C9412
Price: 21597.6 EUR
Availability: InStock

Ref. C9412

The FreeScan Combo+ has 50 blue laser lines, making it almost twice as fast as its sister model. It can capture up to 3.6 million dots per second, while the standard FreeScan Combo, with its 26-line scanning mode, captures 1.86 million dots per second.

The FreeScan Combo+ is the compact, lightweight scanner in Shining3D's FreeScan range, measuring 193 x 63 x 53mm and weighing 620g. It features two light sources: blue laser and infrared VCSEL. In laser mode, it offers accuracy of up to 0.02mm.

Small size and light weight
Blue laser and infrared VCSEL
High accuracy of 0.02mm

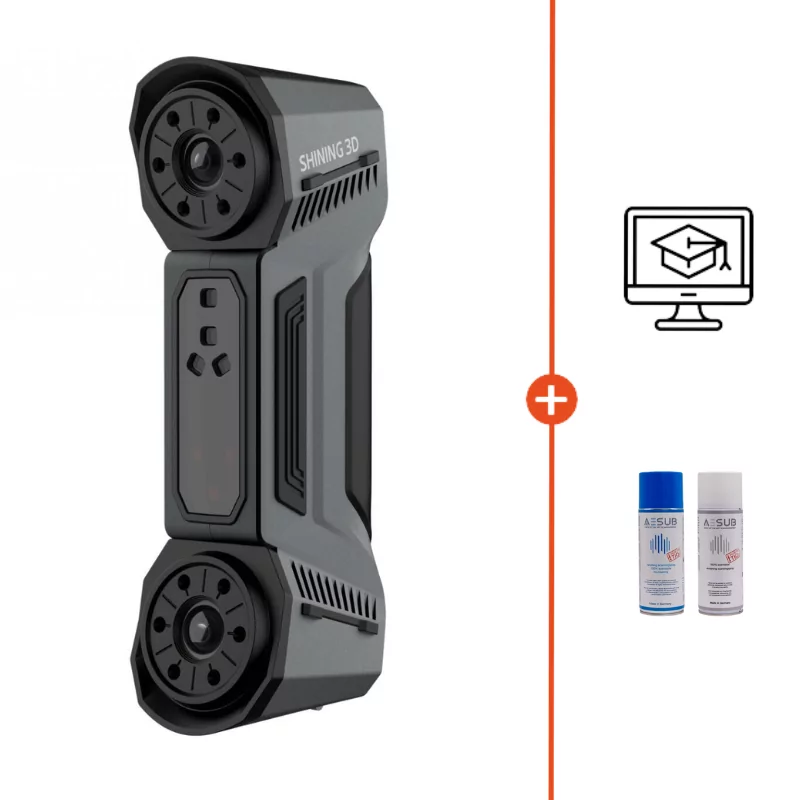

Exclusive: With the purchase of this 3D scanner on our website, we offer an AESUB Blue spray, an AESUB White spray and a two-year warranty with premium support.

€17,998.00 ^{excl. VAT}

VAT at 20%, which is €21,597.60 TTC including tax.

In stock Free shipping

Our experts are at your service to answer your questions and provide advice at info@polyfab3d.com.

Delivery within 48/72 hours

Order before 1pm. Same day shipping

Free delivery

Free delivery near you from €69.90

Premium support

Our teams are on hand to answer all your questions

Over 2000 products

A wide choice of products from the biggest brands

Shining 3D Freescan Combo+

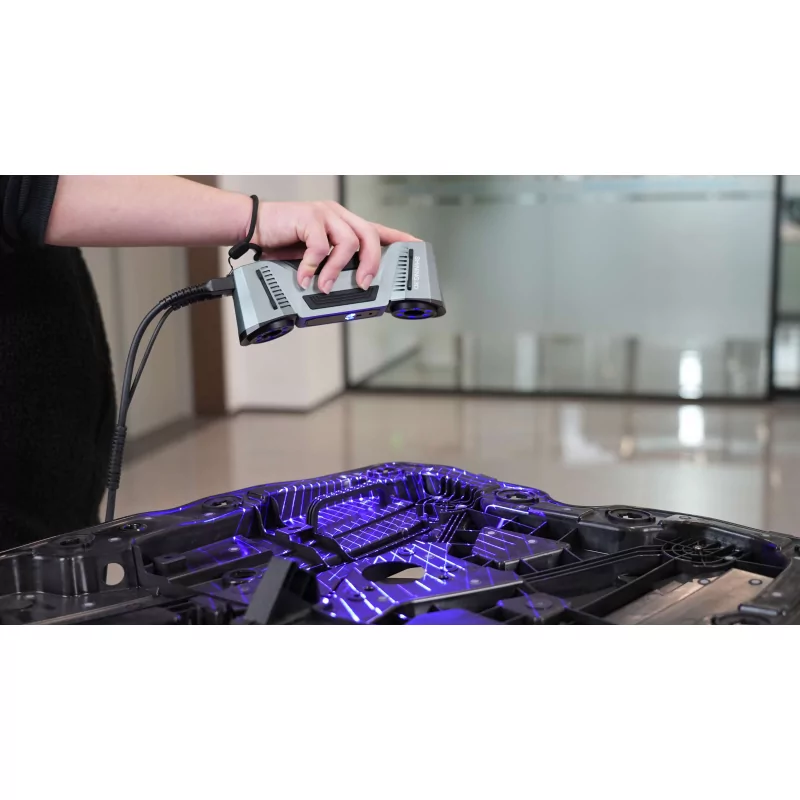

It can be used for precision metrology inspection, reverse engineering, additive manufacturing and other applications in a wide range of manufacturing sectors, including automotive, aerospace, rail, heavy industry, mould making, foundries and medical equipment.

It is equipped with four working modes:

Multiple Lines Scan: 50 laser lines for fast, fluid global scanning,
Single Line Scan: 7 parallel blue laser lines for fine detail scanning,
Fine Scan: 1 single blue laser line to obtain data on deep holes,
Infrared: for fast, marker-free scanning.

Freescan Combo+ highlights

Ergonomic design

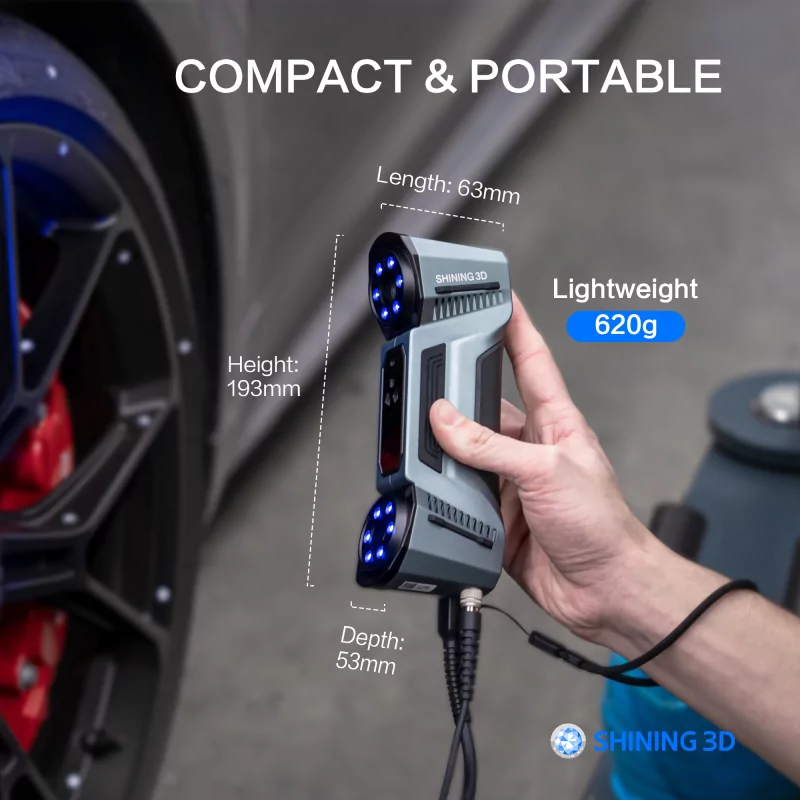

The FreeScan Combo+ is 193x63x53mm in size and weighs just 620g. It features two high-performance light sources: a blue laser and an infrared VCSEL. Metal casing in keeping with modern industrial aesthetics.

High scanning accuracy

Metrological quality accuracy*, accuracy in multiple line scan mode can reach up to 0.02mm with a volumetric accuracy of only 0.0033mm/m.

* Complies with VDI-VDE 2634-3 standard

FreeScan Combo - 4 modes de balayages numériques

4 scanning modes

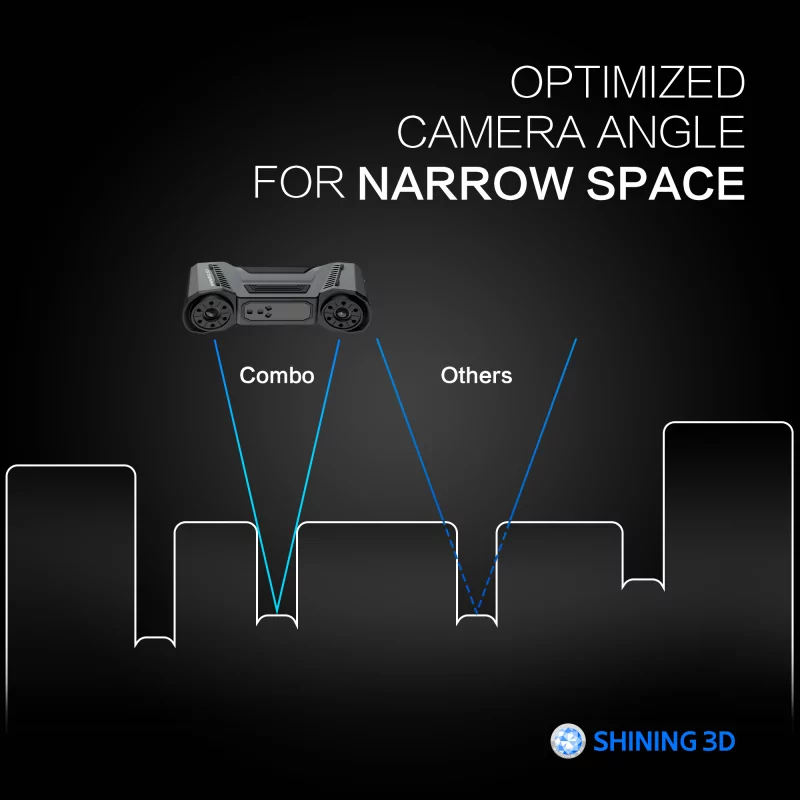

Smooth, efficient all-round scanning. Unaffected by black or reflective surfaces. Thesingle laser line lens angle is optimised for better deep hole data acquisition. Parts with many features do not require marking. The infrared light source can be used directly for fast scanning.

FreeScan Combo - combo laser et infrarouge

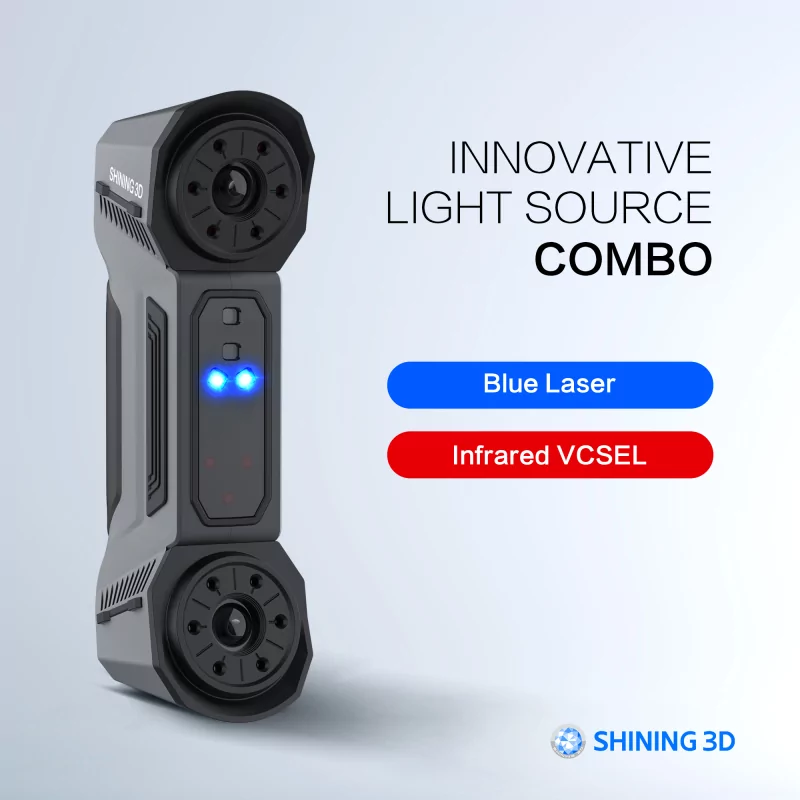

BLUE LASER + INFRARED LIGHT

An innovative combination of blue laser and infrared light sources meets the requirements of different industrial 3D scanning scenarios.

Freescan Combo+ user demos

Recommended technical specification : OS: Windows 10 Pro (64-bit) / Windows 11 Pro (64-bit);
CPU: 13th Gen Intel (R) Core (TM) i7-13650HX 2.6 GHz or above;
Video card: NVIDIA GeForce RTX 4060 or above
Video memory: 8GB or above; RAM: 64GB or above, DDR5 dual-channel; USB port: USB 3.0
