Shining 3D FreeScan Combo+
Ref. C9412
The FreeScan Combo+ has 50 blue laser lines, making it almost twice as fast as its sister model. It can capture up to 3.6 million dots per second, while the standard FreeScan Combo, with its 26-line scanning mode, captures 1.86 million dots per second.
The FreeScan Combo+ is the compact, lightweight scanner in Shining3D's FreeScan range, measuring 193 x 63 x 53mm and weighing 620g. It features two light sources: blue laser and infrared VCSEL. In laser mode, it offers accuracy of up to 0.02mm.
- Small size and light weight
- Blue laser and infrared VCSEL
- High accuracy of 0.02mm
€16,198.20 excl. VAT
€14,998.33 excl. VAT
- 10%
VAT at 0%, which is €16,198.20 TTC including tax.
Ordered before 1:00 PM, delivered to your doorstep tomorrow!
Our experts are at your service to answer your questions and provide advice at info@polyfab3d.com.
Delivery within 48/72 hours
Order before 1pm. Same day shipping
Free delivery
Free delivery near you from €69.90
Premium support
Our teams are on hand to answer all your questions
Over 2000 products
A wide choice of products from the biggest brands
Shining 3D Freescan Combo+

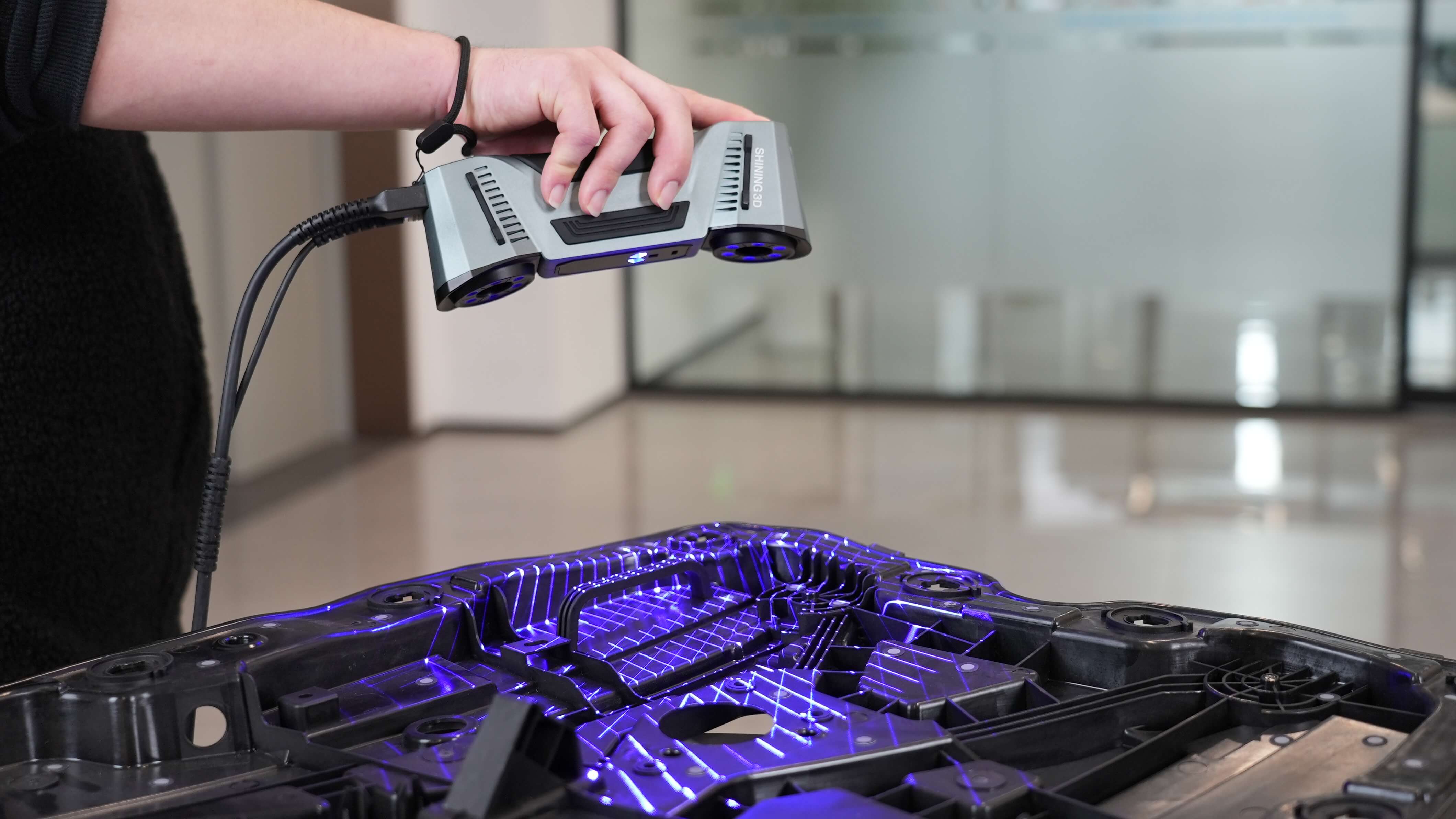

It can be used for precision metrology inspection, reverse engineering, additive manufacturing and other applications in a wide range of manufacturing sectors, including automotive, aerospace, rail, heavy industry, mould making, foundries and medical equipment.
It is equipped with four working modes:
- Multiple Lines Scan: 50 laser lines for fast, fluid global scanning,
- Single Line Scan: 7 parallel blue laser lines for fine detail scanning,
- Fine Scan: 1 single blue laser line to obtain data on deep holes,
- Infrared: for fast, marker-free scanning.
Freescan Combo+ highlights
Ergonomic design

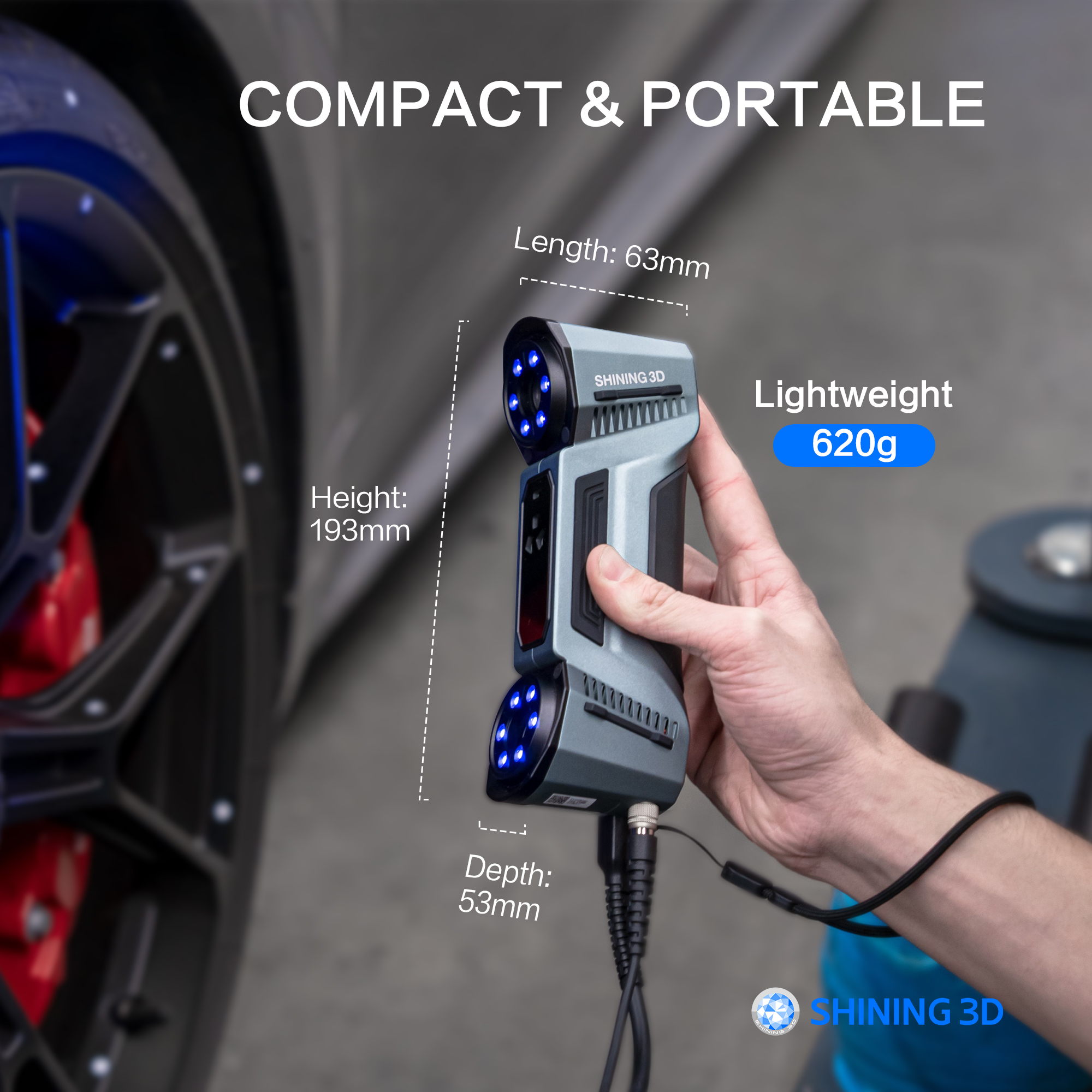

The FreeScan Combo+ is 193x63x53mm in size and weighs just 620g. It features two high-performance light sources: a blue laser and an infrared VCSEL. Metal casing in keeping with modern industrial aesthetics.
High scanning accuracy
Metrological quality accuracy*, accuracy in multiple line scan mode can reach up to 0.02mm with a volumetric accuracy of only 0.0033mm/m.
* Complies with VDI-VDE 2634-3 standard
4 scanning modes

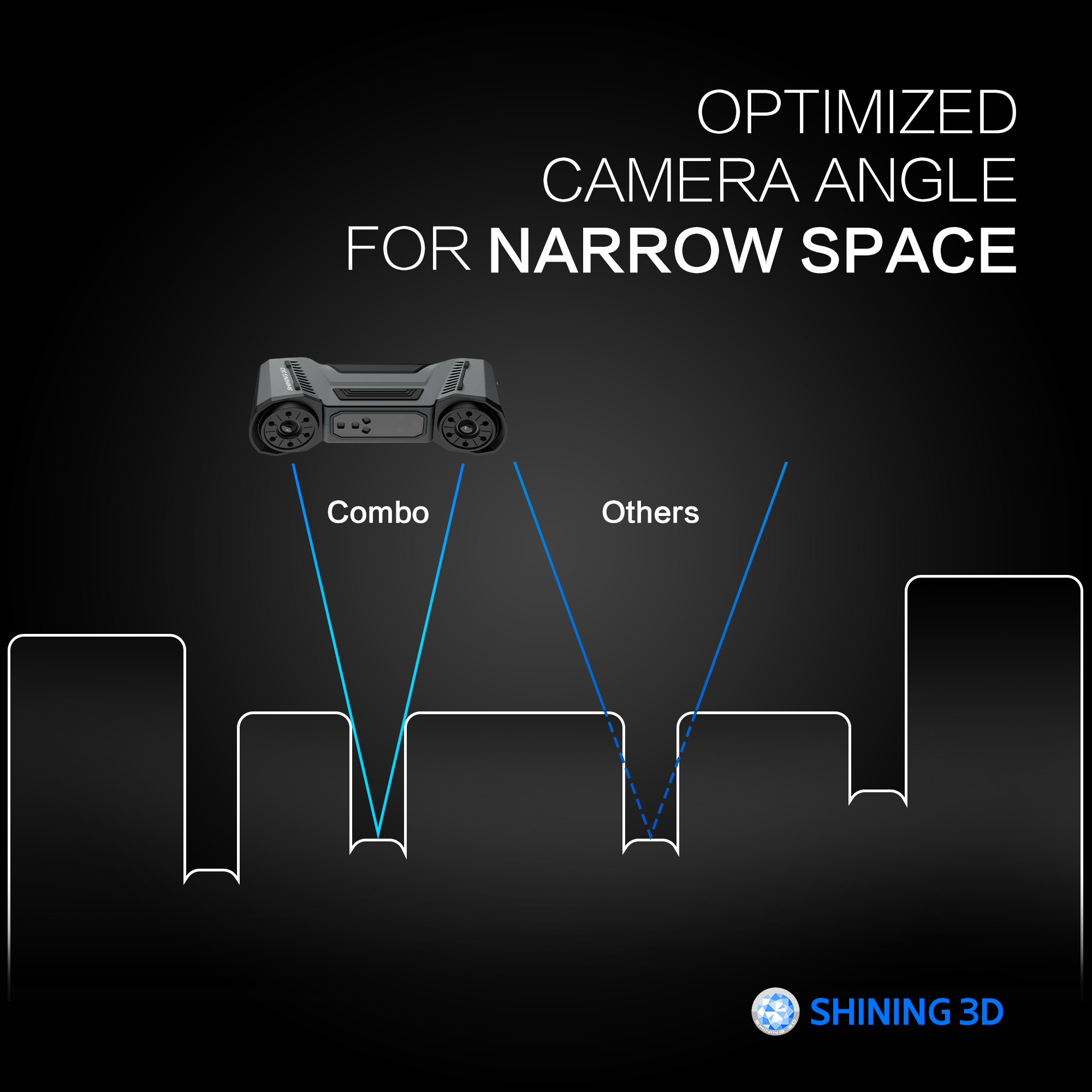

Smooth, efficient all-round scanning. Unaffected by black or reflective surfaces. Thesingle laser line lens angle is optimised for better deep hole data acquisition. Parts with many features do not require marking. The infrared light source can be used directly for fast scanning.

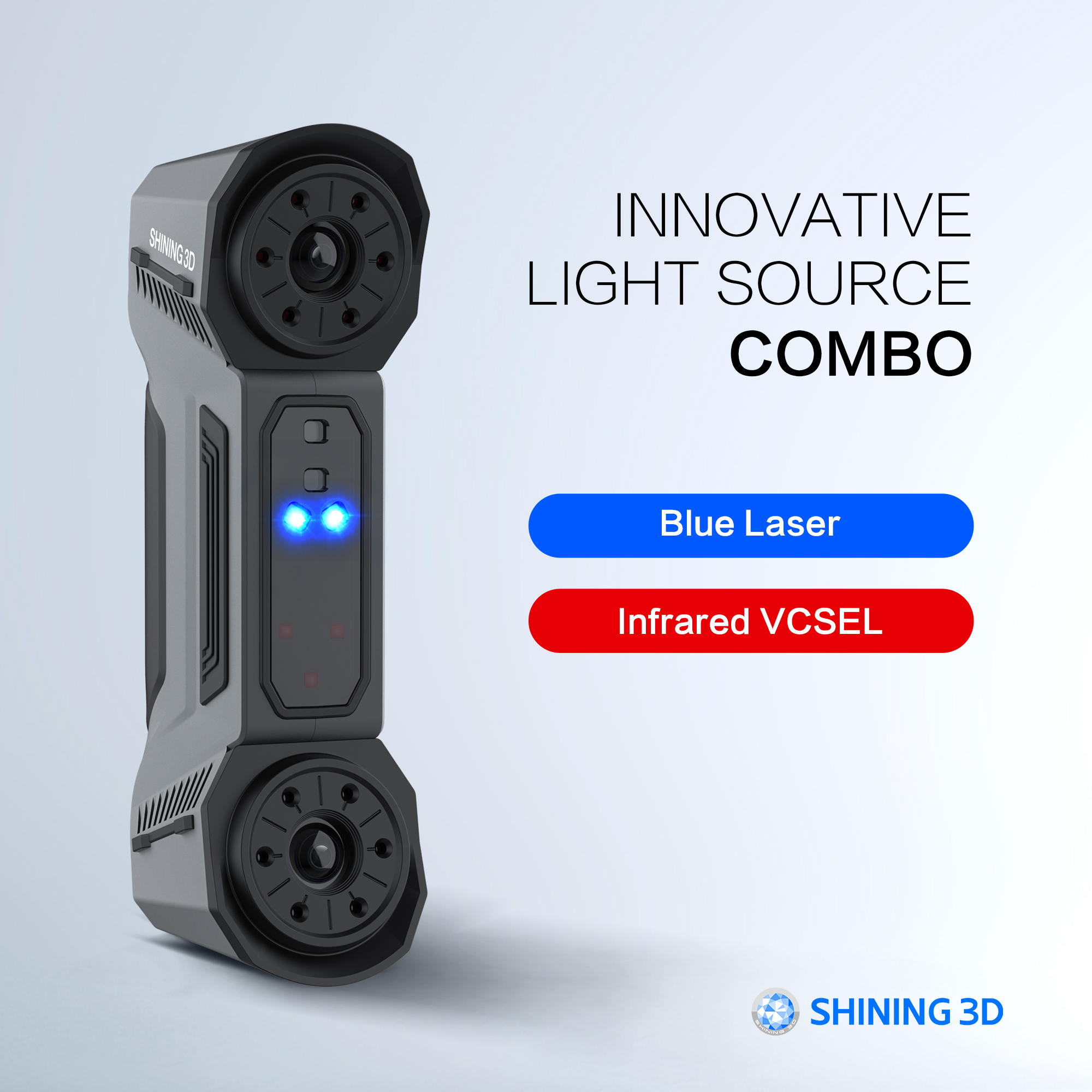

BLUE LASER + INFRARED LIGHT
An innovative combination of blue laser and infrared light sources meets the requirements of different industrial 3D scanning scenarios.
Freescan Combo+ user demos
Recommended technical specification : OS: Windows 10 Pro (64-bit) / Windows 11 Pro (64-bit);
CPU: 13th Gen Intel (R) Core (TM) i7-13650HX 2.6 GHz or above;
Video card: NVIDIA GeForce RTX 4060 or above
Video memory: 8GB or above; RAM: 64GB or above, DDR5 dual-channel; USB port: USB 3.0
CPU: 13th Gen Intel (R) Core (TM) i7-13650HX 2.6 GHz or above;
Video card: NVIDIA GeForce RTX 4060 or above
Video memory: 8GB or above; RAM: 64GB or above, DDR5 dual-channel; USB port: USB 3.0
- 🎯 We collaborate with businesses.
- 📦 Stock in Europe
- 🚚 Ships within 24 hours
- 🔐 Secure payments
- 🔙 14 days to change your mind
- 📱 Need advices ? Contact technical support
Specifications for Shining 3D FreeScan Combo+
Technologie / Produit
- Technology
- Structured light
- Brand
- Shining 3D
- Type of product
- 3D scanner
- Range
- Professional
Scanner 3D
- Light source
- Infrared, Laser
- Security
- Laser Class I (safe for eyes)
- Maximum accuracy
- 0.02 mm
- Resolution
- 0.05 - 10 mm
- Maximum frame rate
- 3 600 0000 points/s
- Scanning area
- 510 x 520 mm
- Maximum scan distance (manual)
- 200 / 300 mm
- Colour scan
- No
- Texture scanning
- Yes
- Pr
- 0.02 mm + 0.033 mm/m
Logiciel
- Data transfer
- USB 3.0 cable
- Supported file type
- STL, 3MF, CSA
- Scanner software
- FreeScan
