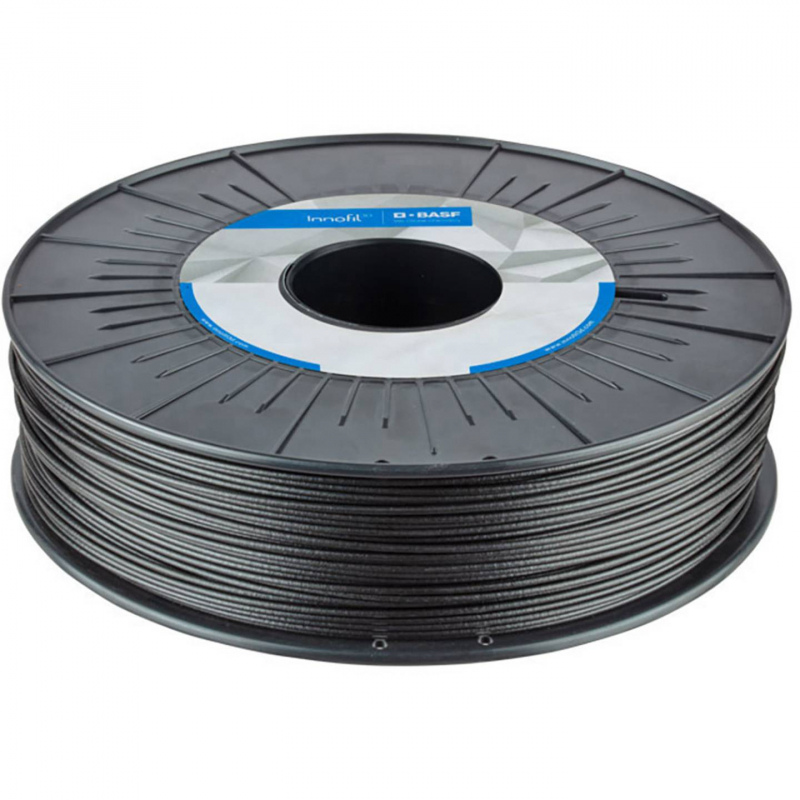

Ultrafuse PA BASF - 2.85mm - 750g - Black
Ref. PA-4502b075
Ultrafuse PA filament is a very high quality Nylon Copolyamide 6/66 developed by BASF from its Ultramid® range. The Ultrafuse PA filament is a professional grade nylon that can be used in many demanding technical applications. It is characterised by its very high mechanical strength, rigidity and thermal stability.
€49.90 excl. VAT
VAT at 0%, which is €49.90 TTC including tax.
Ordered before 1:00 PM, delivered to your doorstep tomorrow!
Delivery within 48/72 hours
Order before 1pm. Same day shipping
Free delivery
Free delivery near you from €69.90
Premium support
Our teams are on hand to answer all your questions
Over 2000 products
A wide choice of products from the biggest brands
Ultrafuse PA a very high quality Nylon 6/66
The Ultrafuse PA filament is the result of BASF 's work to integrateUltramid® into the world of 3D printing. An alloy of PA6 and PA66 of intermediate viscosity that offers very interesting mechanical and thermal properties.
The Ultrafuse PA filament offersgreater resistance to impact and wear than standard PA6 or PA66. It is ideal for the manufacture of industrial parts in the engineering, automotive and aerospace industries, to name but a few.
The strengths of BASF Ultrafuse PA
Mechanical strength:Ultrafuse PA has very high mechanical strength and is highly resistant to impact, wear and deformation.
High rigidity material: You can print 3D parts and semi-flexible models or very rigid parts depending on the thickness of the part printed.
Low melting temperature: The melting temperature of this Ultrafuse PA filament is relatively low, making it printable on many professional 3D printers.
Printing tips forUltrafuse PA
The Ultrafuse PA filament is a Nylon PA6/66 which is relatively easy to print. It will require a printer capable of extruding filament at a temperature of 220 to 250°Cand a heating plate capable of reaching 120°C. We recommend that you use a glue to increase the adhesion of the Ultrafuse PA filament to the platen during printing.
Ultrafuse PA filament is very sensitive to humidity and we recommend that you keep it in an oven such as a hot plate Polybox and dry it thoroughly if necessary.
- 🎯 We collaborate with businesses.
- 📦 Stock in Europe
- 🚚 Ships within 24 hours
- 🔐 Secure payments
- 🔙 14 days to change your mind
- 📱 Need advices ? Contact technical support
Specifications for Ultrafuse PA BASF - 2.85mm - 750g - Black
Technologie / Produit
- Technology
- FDM
- Material
- PA
- Visual aspect
- Opaque, Brilliant
- Diameter
- 2.85 mm
- Sensitivity to humidity
- Strong
- Application
- Prototyping, Functional part
- Odour
- Yes
- Harmful
- Yes
- Level of difficulty
- Expert
- Brand
- BASF
- Type of product
- 3D Filament
- Colour
- Black
- Net weight
- 750 g
Valeurs techniques
- Glass transition temperature
- 49 °C
- Deflection temperature under load (0.45 MPa)
- 135 °C
- Deflection temperature under load (1.8 MPa)
- 65 °C
- Temperature VICAT
- 172 °C
- Izod
- 45 kJ/m² of energy
- Charpy
- 29 kJ/m² of energy
- Resistors
- Mechanical engineering, Wear and tear
- Tensile modulus
- 2419 Mpa
- Flexural modulus
- 2051 Mpa
- Tensile yield strength
- 62 MPa
- Maximum elongation at break
- 9.6 %
- Density
- 1.11 g/cm3
Extrusion
- Nozzle type
- Brass
- Type of consumable
- Non-proprietary filament (open system)
- Min. plateau temperature
- 90 °C
- Max. tray temperature
- 120 °C
- Min. extrusion temperature
- 220 °C
- Max. extrusion temperature
- 250 °C
- Min. speed
- 30 mm/s
- Max. speed
- 60 mm/s
- Minimum nozzle diameter
- 0.2 mm
- Bowden compatibility
- Yes
- Warping sensitivity
- Strong
- AMS compatible
- No
Équipements spécifiques
- Closed printing enclosure
- Yes
- Filtration
- HEPA, Coal
Installation / Prérequis
- Type
- Filament on spool
- Box supplied
- Yes
- Coil material
- Plastic
