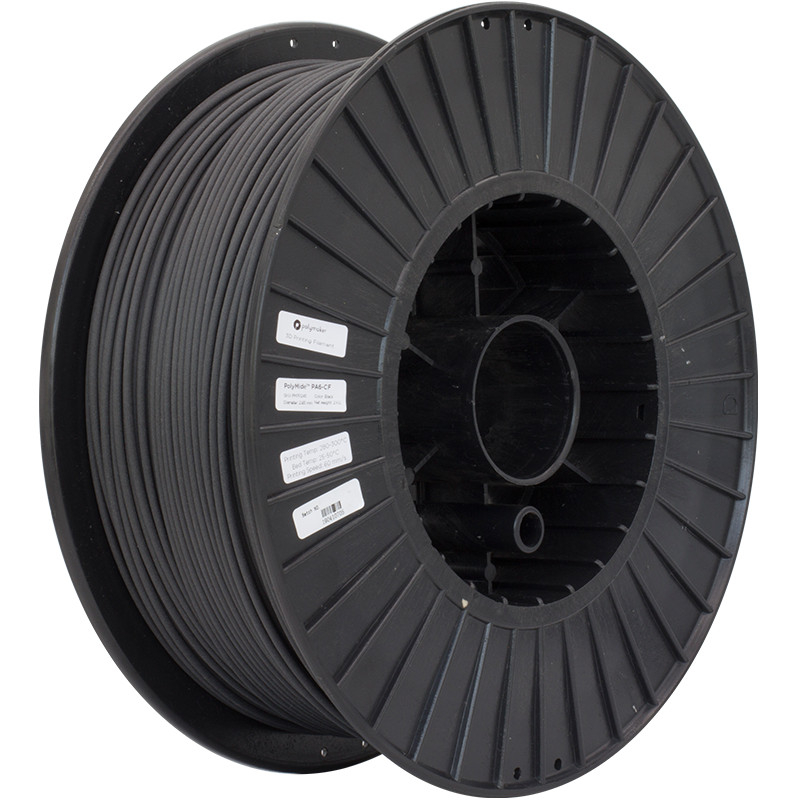

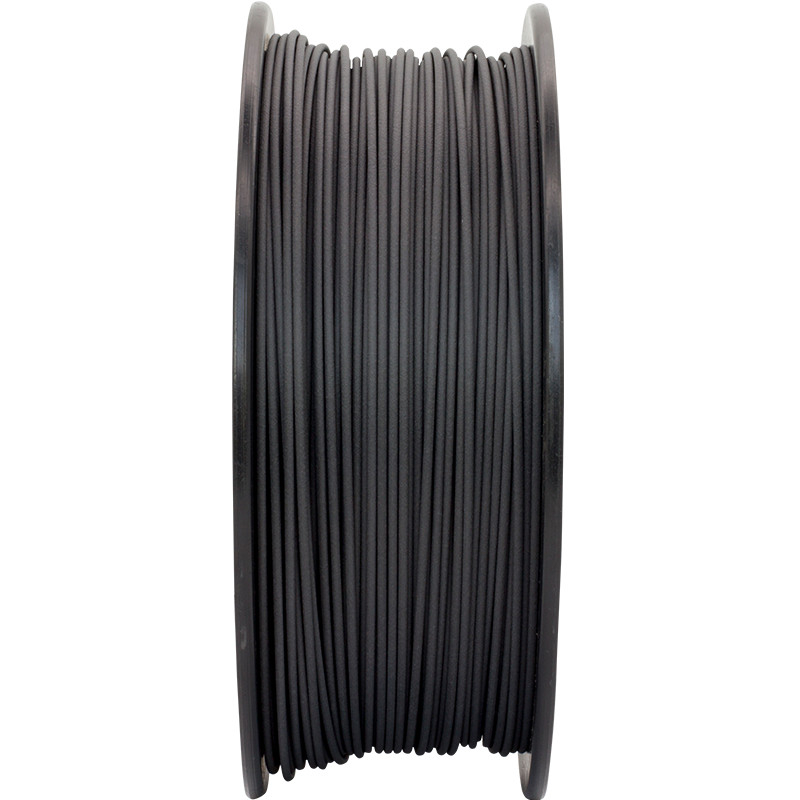

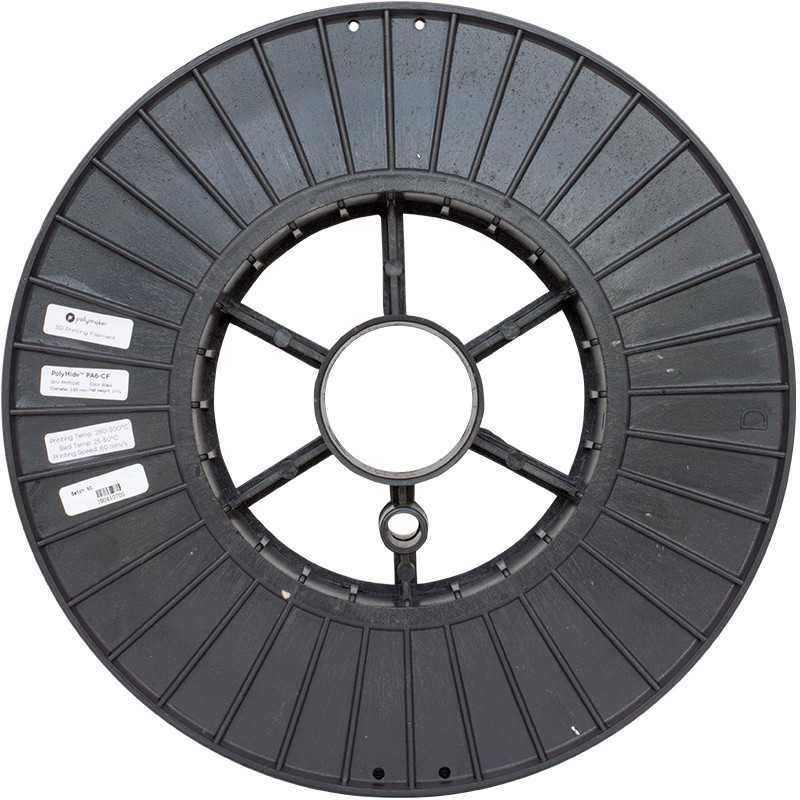

    Polymide PA6-CF Black - 2.85mm - 2 kg

    Ref. PG03004

    The PolyMide PA6-CF is a PA6 (nylon 6) filament reinforced with carbon fiber. This material has excellent thermal and mechanical properties, without affecting the layer adhesion.

    Sold out

    The product is no longer available on our website.

    However ✨, here is a new arrival and the product we recommend:

    View this product

    Polymide PA6-CF Noir - 2.85mm - 500 g

    Price €53.94

    Delivery within 48/72 hours

    Order before 1pm. Same day shipping

    Free delivery

    Free delivery near you from €69.90

    Premium support

    Our teams are on hand to answer all your questions

    Over 2000 products

    A wide choice of products from the biggest brands

    Use of PolyMide PA6-CF

    The PolyMide PA6-CF filament, with its static resistance and resistance to thermal deflection, is an ideal material for printing jigs and electronic assemblies.

    PolyMide PA6-CF: Key Features

    Good layer adhesion: The PolyMide PA6-CF Black filament provides excellent layer adhesion.

    Antistatic: The PolyMide PA6-CF Black from Polymaker is a material that prevents the formation of static electricity.

    Thermal resistance: The PolyMide PA6-CF is a material capable of withstanding high temperatures.

    Our usage recommendations

    3D printing with the PolyMide PA6-CF Black filament should be done at an extrusion temperature of 280 to 300°C and a print speed of 60 to 70mm/s. It is recommended to use a heated bed with a temperature of 25 to 50°C (maximum).

    The use of an abrasion-resistant nozzle is also recommended.

    • 🎯 We collaborate with businesses.
    • 📦 Stock in Europe
    • 🚚 Ships within 24 hours
    • 🔐 Secure payments
    • 🔙 14 days to change your deww
    • 📱 Need advices ? Contact technical support

    A question? Need help? Contact us, it's a pleasure to help you.

    ✉️ Contact us

    Our team is available from Monday to Friday, from 10 am to 12 pm and from 2 pm to 5 pm.

    Specifications for Polymide PA6-CF Black - 2.85mm - 2 kg

    Technologie / Produit

    Technology
    FDM
    Material
    PA
    Visual aspect
    Opaque, Mat, Carbon
    Diameter
    2.85 mm
    Sensitivity to humidity
    Strong
    Application
    Prototyping, Functional part
    Odour
    Yes
    Harmful
    Yes
    Level of difficulty
    Intermediate
    Type of product
    3D Filament
    Colour
    Black
    Net weight
    2 kg

    Valeurs techniques

    Glass transition temperature
    74 °C, 2 °C
    Deflection temperature under load (0.45 MPa)
    215 °C
    Deflection temperature under load (1.8 MPa)
    196 °C
    Charpy
    20 kJ/m² of energy
    Resistors
    Mechanical engineering, Wear and tear
    Composite
    Carbon
    Percentage of fibre
    20 %
    Tensile modulus
    6500 Mpa
    Flexural modulus
    7350 MPa
    Tensile yield strength
    93 MPa
    Tensile strength
    160 MPa
    Density
    1.17 g/cm3

    Extrusion

    Nozzle type
    Tempered steel, Ruby
    Type of consumable
    Non-proprietary filament (open system)
    Min. plateau temperature
    25 °C
    Max. tray temperature
    50 °C
    Min. extrusion temperature
    280 °C
    Max. extrusion temperature
    300 °C
    Min. speed
    60 mm/s
    Max. speed
    60 mm/s
    Minimum nozzle diameter
    0.5 mm
    Bowden compatibility
    Yes
    Warping sensitivity
    Average
    AMS compatible
    Yes (with adapter)

    Équipements spécifiques

    Closed printing enclosure
    Yes
    Filtration
    HEPA, Coal

    Installation / Prérequis

    Type
    Filament on spool

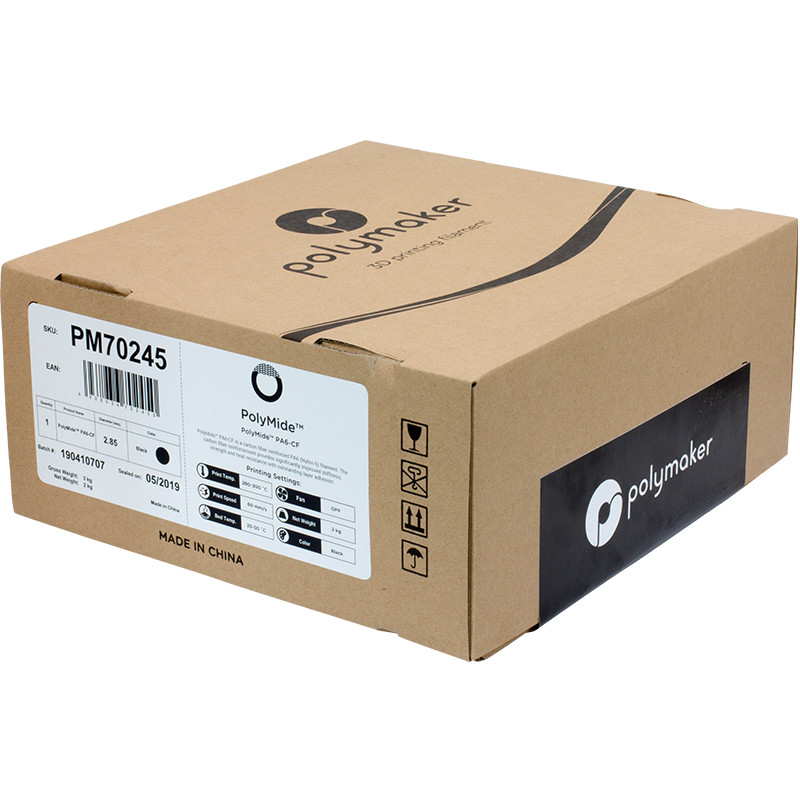

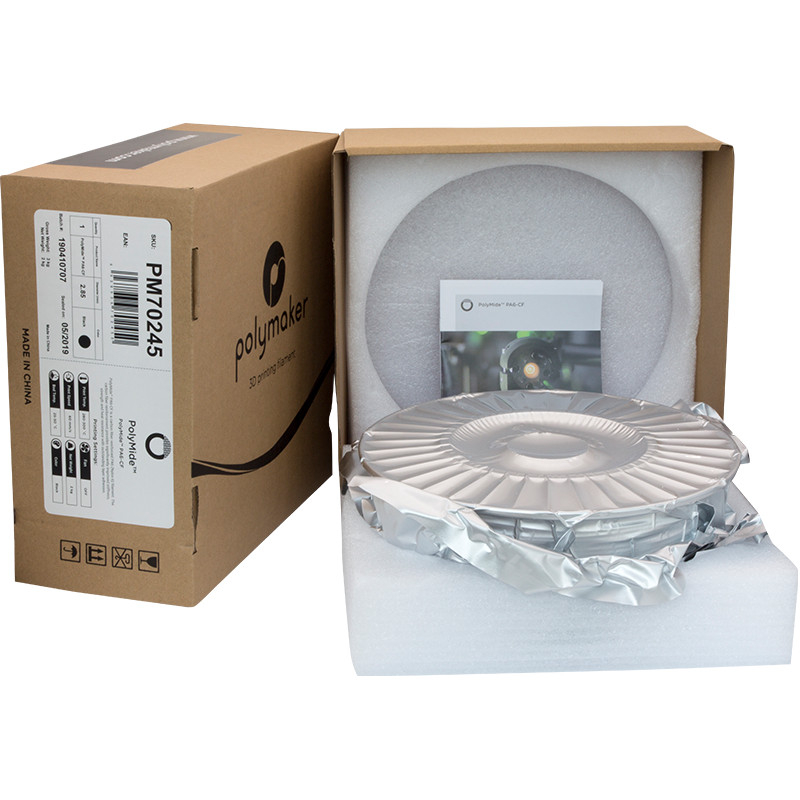

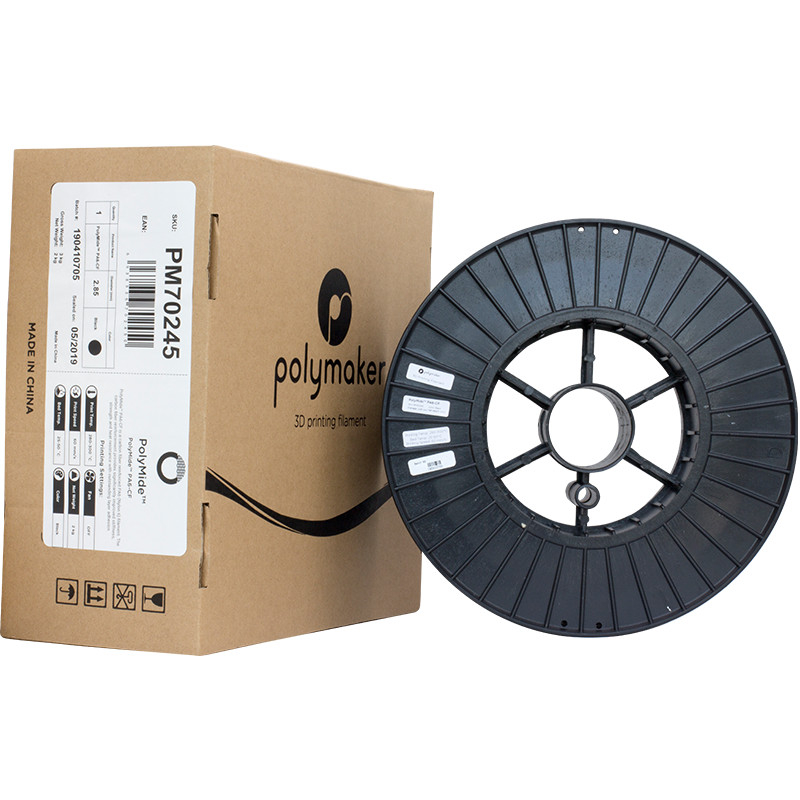

    Box supplied
    Yes
    Coil material
    Plastic
