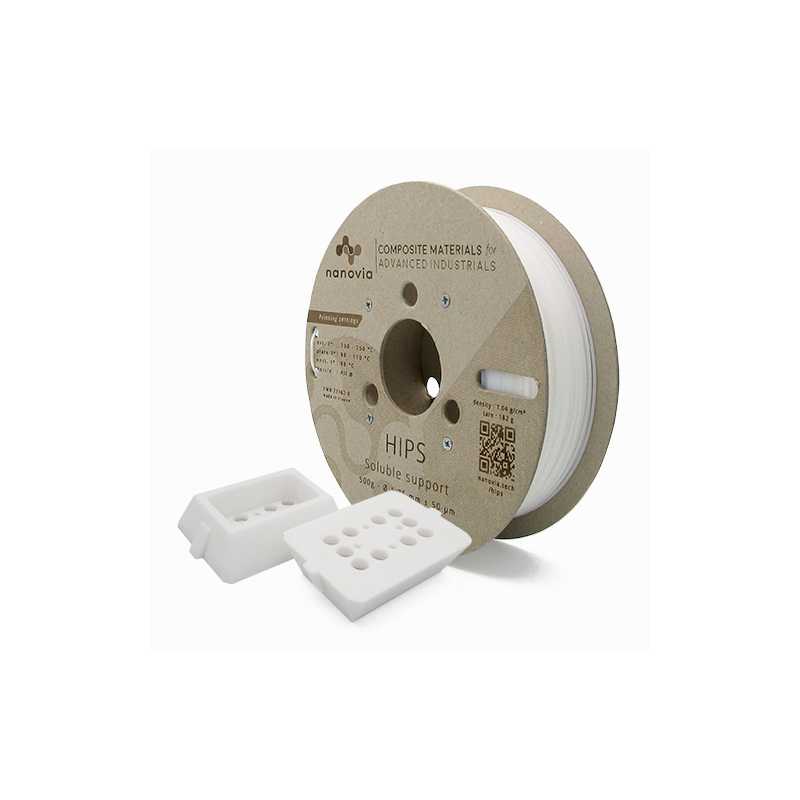

Nanovia HIPS - 1.75mm - 750 g
Ref. nahpsnt1075wt
Nanovia HIPS(High Impact Polystyrene) can be used to produce limonene-soluble substrates or to print impact-resistant objects.
- Impact resistance
- Soluble in limonene
- Easy to print
- Good heat resistance
€19.90 excl. VAT
VAT at 0%, which is €19.90 TTC including tax.
Ordered before 1:00 PM, delivered to your doorstep tomorrow!
Delivery within 48/72 hours
Order before 1pm. Same day shipping
Free delivery
Free delivery near you from €69.90
Premium support
Our teams are on hand to answer all your questions
Over 2000 products
A wide choice of products from the biggest brands
HIPS Nanovia 1.75mm
Nanovia HIPS is characterised by its good thermal and mechanical properties. Its impact resistance is particularly appreciated by manufacturers. The specific viscosity of HIPS for additive manufacturing means that details can be printed with great precision, as well as a smooth appearance.

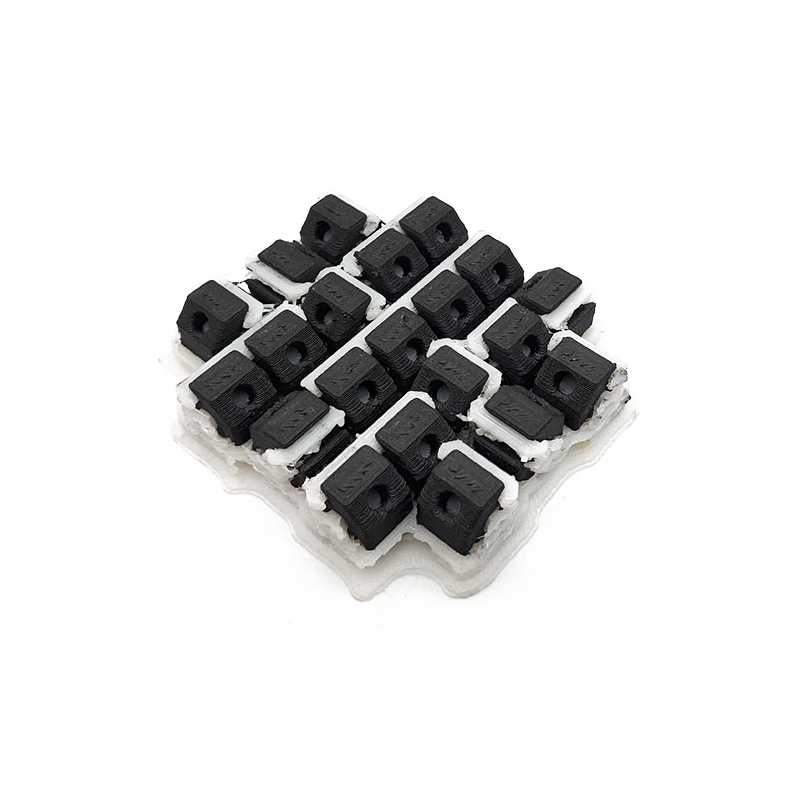

Nanovia HIPS is perfectly suited to printing supports and rafts in double extrusion 3D printing. It is compatible with the vast majority of materials and provides a rigid foundation that is easy to remove from your parts. It is soluble in limonene.
HIPS de filament highlights Nanovia
Impact resistance: The composition of this High ImpactPolystyrene gives it mechanical properties and good impact resistance.
Soluble supports: This solution is soluble in limonene and will be very useful when used as a support material with technical filaments that are not necessarily soluble with other support materials.
Our recommendations for use with HIPS Nanovia 1.75mm
HIPS Nanovia is a filament compatible with all open 3D printers equipped with extrusion at 1.75mm.. It will adhere to any type of heated platen.
We recommend that you set your printer to an extrusion temperature of between 230 and 250°C in order to print HIPS Nanovia under optimum conditions. A print speed of between 40 and 60mm/s and the use of a platen with a heating option of up to 90 to 110°C are also recommended.
- 🎯 We collaborate with businesses.
- 📦 Stock in Europe
- 🚚 Ships within 24 hours
- 🔐 Secure payments
- 🔙 14 days to change your mind
- 📱 Need advices ? Contact technical support
Specifications for Nanovia HIPS - 1.75mm - 750 g
Technologie / Produit
- Technology
- FDM
- Material
- Support
- Visual aspect
- Opaque
- Bio-sourced
- No
- Diameter
- 1.75 mm
- Sensitivity to humidity
- Low
- Application
- Prototyping, Production, Functional part
- Odour
- Yes
- Harmful
- Yes
- Level of difficulty
- Intermediate
- Brand
- Nanovia
- Type of product
- 3D Filament
- Colour
- Natural
- Net weight
- 750 g
Valeurs techniques
- Deflection temperature under load (1.8 MPa)
- 75 °C
- Temperature VICAT
- 103 °C
- Charpy
- 18 kJ/m² of energy
- Tensile modulus
- 2068 Mpa
- Tensile yield strength
- 35 MPa
- Maximum elongation at break
- 2 %
- Density
- 1.04 g/cm3
Extrusion
- Nozzle type
- Brass
- Type of consumable
- Non-proprietary filament (open system)
- Min. plateau temperature
- 90 °C
- Max. tray temperature
- 110 °C
- Min. extrusion temperature
- 230 °C
- Max. extrusion temperature
- 250 °C
- Min. speed
- 40 mm/s
- Max. speed
- 60 mm/s
- Minimum nozzle diameter
- 0.2 mm
- Bowden compatibility
- Yes
- Warping sensitivity
- Strong
- AMS compatible
- No
Équipements spécifiques
- Closed printing enclosure
- No
- Filtration
- Yes
Installation / Prérequis
- Type
- Filament on spool
- Box supplied
- Yes
- Coil material
- Cardboard
