• Made In France

PA Rail Nanovia (EN 45545-2) - 1.75mm - 500 g

Ref. napaxrl1050bk
Nanovia PA Rail is a NF EN 45545-2 standard filament specifically designed for the rail sector, which complies with non-flammability and non-smoke emission standards. The polyamide (nylon) filament can be used to produce parts that can be printed at temperatures of up to 100°C without the need for a temperature-controlled chamber, in sensitive environments.
€57.75 excl. VAT

VAT at 0%, which is €57.75 TTC including tax.

In Stock Free shipping

Ordered before 1:00 PM, delivered to your doorstep tomorrow!

À partir de 2, seulement €56.02 / unité. 3%

À partir de 5, seulement €54.86 / unité. 5%

À partir de 10, seulement €53.13 / unité. 8%

Delivery within 48/72 hours

Order before 1pm. Same day shipping

Free delivery

Free delivery near you from €69.90

Premium support

Our teams are on hand to answer all your questions

Over 2000 products

A wide choice of products from the biggest brands

Use of PA Rail de Nanovia

This material, specifically designed for use in high-tech sectors such as railways, meets and complies with the criteria of standard NF EN 45545-2.

Based on standardised materials, it ensures safety in the event of fire by preventing the spread of smoke or flames. It ismade from polyamide (nylon) and ceramic flame retardants. Easy to print, it does not require a closed enclosure.

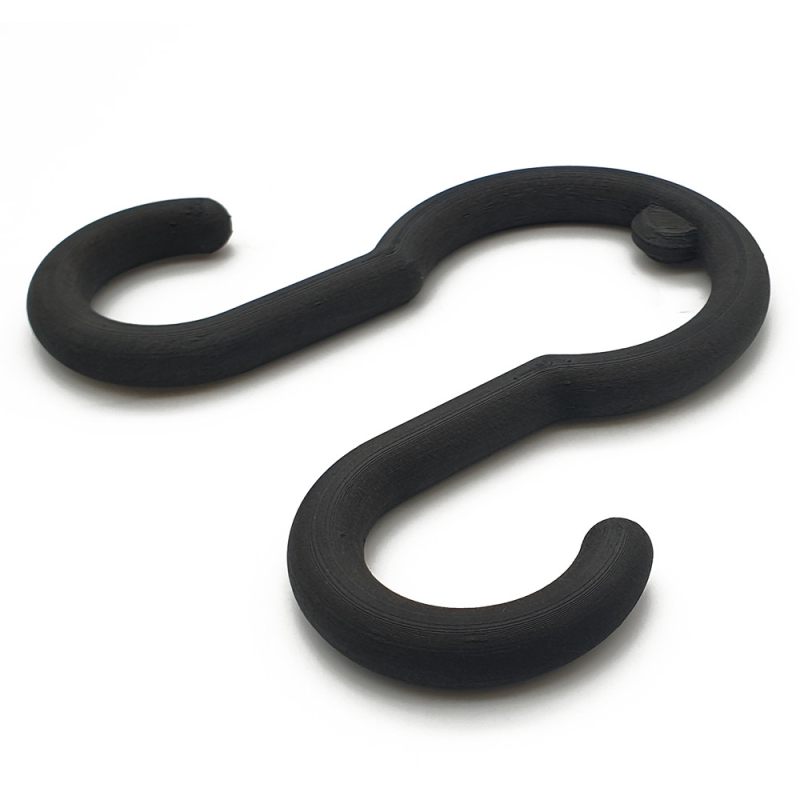

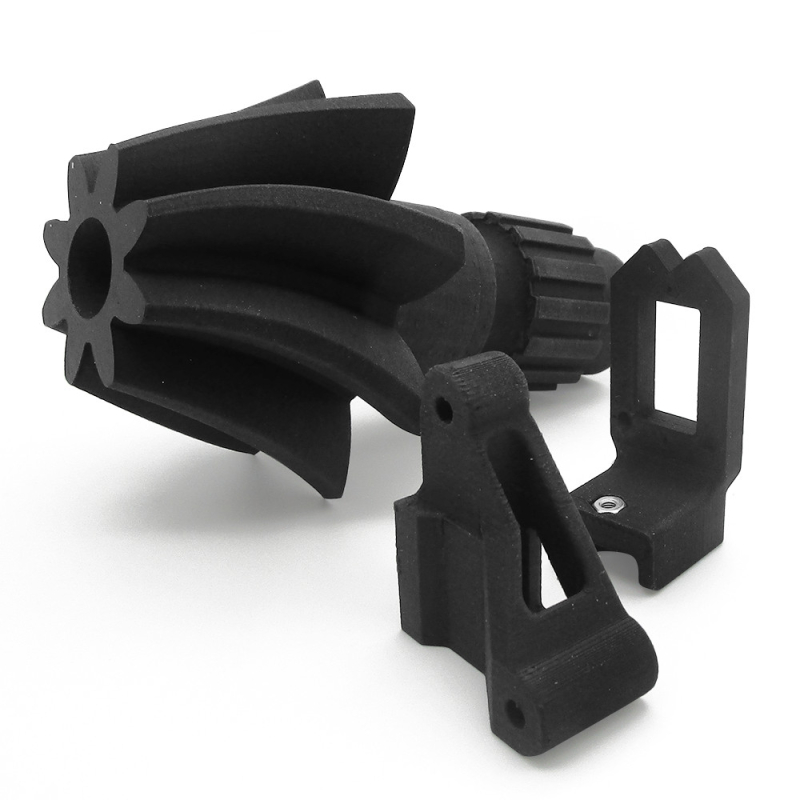

PA Rail is used for functional part applications such as electrical equipment controls, handles and buttons, armrests, etc.

Nanovia PA-Rail: key points

EN 45545-2: PA Rail complies with this standard, which is essential for certain rail applications.

Non-flammable: Made from standardised materials, this filament is non-flammable.

Very good adhesion: No warping during printing

Easy to print: Can be printed without an enclosure

Our recommendations for use with Nanovia PA Rail filament

The Nanovia PA Rail filament has an extrusion temperature ideally between 260 and 280°. A heating plate at 70°C to 80°C is recommended.

Nylon is sensitive to humidity, so we recommend that you store your spool in a dry place with a desiccant. If it has been exposed to humidity or open air, please steam your filament at 60°C for 4 hours or more.

Finally, the use of a printer with an air extraction or filtered enclosure is highly recommended.

  • 🎯 We collaborate with businesses.
  • 📦 Stock in Europe
  • 🚚 Ships within 24 hours
  • 🔐 Secure payments
  • 🔙 14 days to change your mind
  • 📱 Need advices ? Contact technical support

Specifications for PA Rail Nanovia (EN 45545-2) - 1.75mm - 500 g

Technologie / Produit

Technology
FDM
Material
PA
Visual aspect
Mat
Standards
EN 45545-2
Sensitivity to humidity
Strong
Application
Functional part
Odour
Yes
Harmful
Yes
Level of difficulty
Intermediate
Brand
Nanovia
Type of product
3D Filament
Colour
Black
Net weight
500 g

Valeurs techniques

Density
1.41 g/cm3

Extrusion

Filament diameter
1.75 mm
Nozzle type
Steel
Type of consumable
Non-proprietary filament (open system)
Nozzle diameter
0.4 mm
Min. plateau temperature
70 °C
Min. extrusion temperature
260 °C
Max. extrusion temperature
280 °C
Bowden compatibility
Yes
Warping sensitivity
Strong
AMS compatible
No

Équipements spécifiques

Closed printing enclosure
Yes
Filtration
HEPA, Coal

Customer reviews about PA Rail Nanovia (EN 45545-2) - 1.75mm - 500 g

Customer questions about PA Rail Nanovia (EN 45545-2) - 1.75mm - 500 g

  • Bonjour,
    Pourriez vous me donner un contact technique pour en savoir plus sur le filament EN 45545 ferroviaire svp
    Nous sommes tres interessés car nous travaillons pour le ferroviaire...
    Jerome BRUN
    Responsable Bureau d'etudes Jerome Brun • 07/03/2023

    • Bonjour M. Brun, N'hésitez pas à nous contacter au 0413680351 pour être mis en relation avec l'un de nos experts. Autrement, vous pouvez également réserver un créneau pour échanger avec eux sur votre besoin via le lien suivant : https://calendly.com/charly-polyfab3d/15min Si vous préférez, merci de laissez vos coordonnées afin que nous vous recontactions. Excellente journée, Stéphane • 09/03/2023
