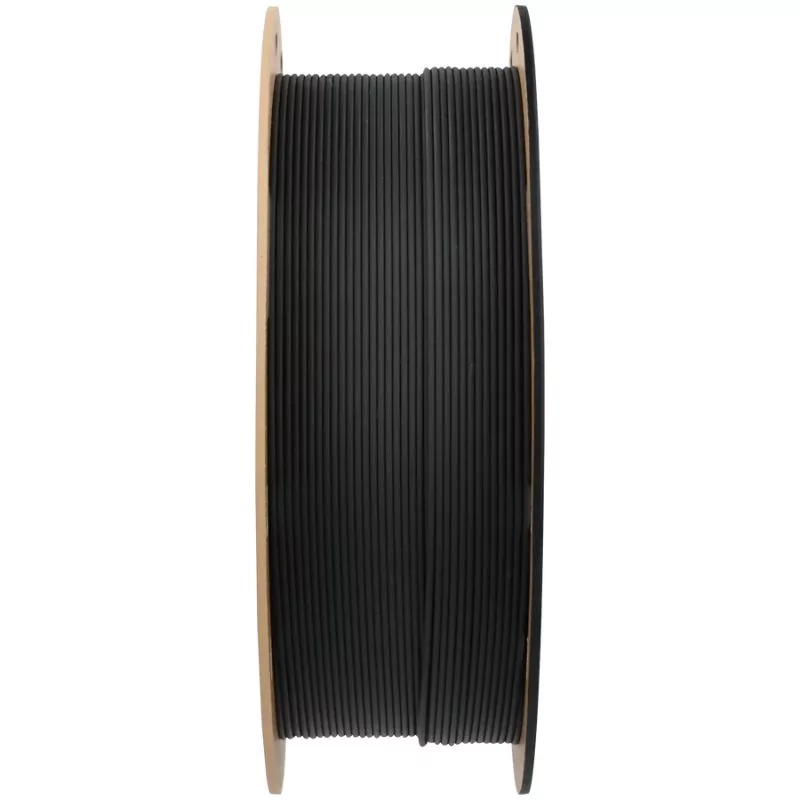

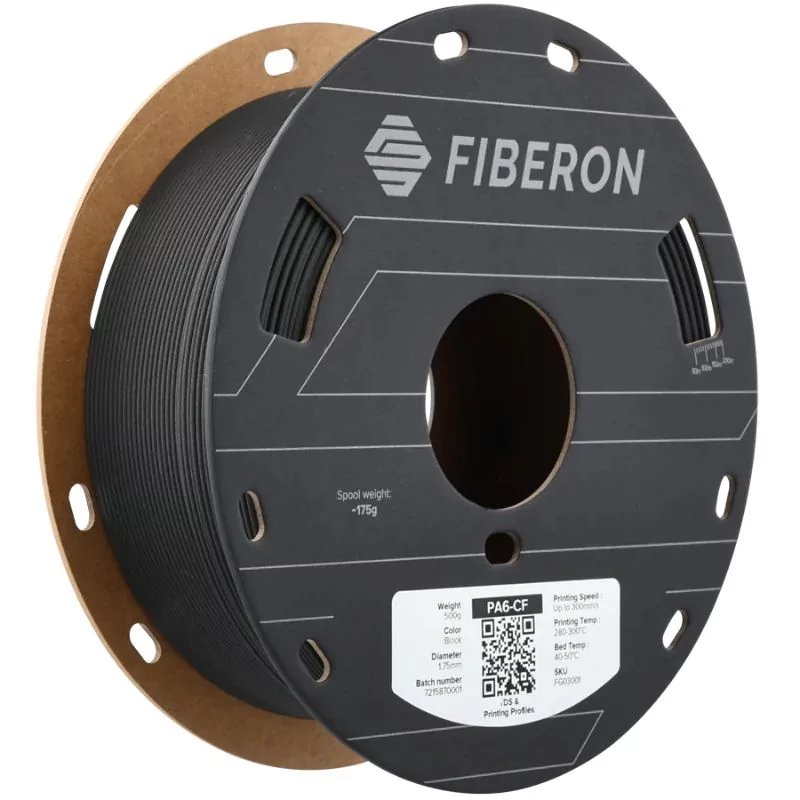

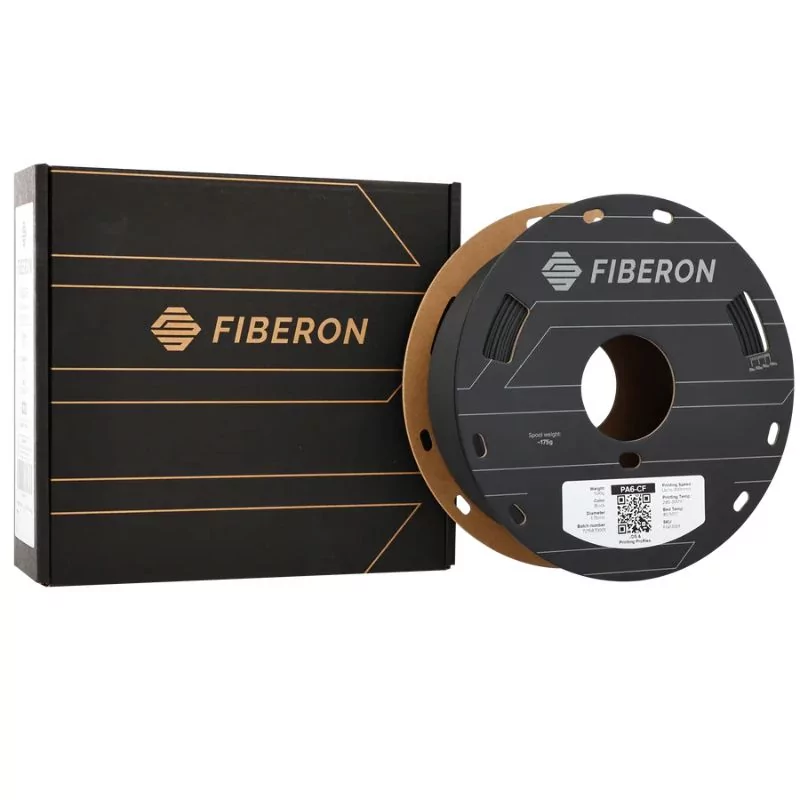

Polymaker Fiberon™ PA6-CF20 Black - 1.75mm - 500g

Ref. FG03001

The Polymaker Fiberon™ PA6-CF20 filament is specially designed for technical projects requiring high mechanical strength. With its 20% carbon fibers, it combines rigidity, lightness, and thermal stability for a wide range of industrial applications.

500g spool, 1.75 mm diameter filament. Formerly known as PolyMide PA6-CF.

  • Increased strength due to the addition of carbon fibers.
  • Resistant to high temperatures (215°C).
  • Precise and reliable prints, without deformation.
  • Excellent adhesion to the build plate.
€37.18 excl. VAT

VAT at 20%, which is €44.62 TTC including tax.

In Stock Free shipping

Ordered before 1:00 PM, delivered to your doorstep tomorrow!

Get an instant quote

Our experts are at your service to answer your questions and provide advice at info@polyfab3d.com.

Delivery within 48/72 hours

Order before 1pm. Same day shipping

Free delivery

Free delivery near you from €69.90

Premium support

Our teams are on hand to answer all your questions

Over 2000 products

A wide choice of products from the biggest brands

Polymaker Fiberon™ PA6-CF20 Black - 1.75mm - 500g

The Polymaker Fiberon™ PA6-CF20 filament is a high-performance material designed for applications requiring extreme rigidity and maximum resistance to mechanical stress. Made of nylon PA6 reinforced with 20% carbon fibers, it is ideal for the production of technical and industrial parts subjected to heavy loads and high temperatures.

With the addition of carbon fibers, this filament offers remarkable strength and exceptional wear resistance. It also exhibits low deformation during printing, ensuring precise results and dimensional stability. Whether for machine components, production parts, or tools, Fiberon™ PA6-CF20 is the optimal choice for demanding applications.

Advantages of Polymaker Fiberon™ PA6-CF20

  • Carbon fiber reinforcement (20%): Providing superior rigidity and increased resistance to impacts and wear, this filament is suitable for challenging industrial environments.
  • Excellent thermal stability: Capable of withstanding high temperatures (215°C), it is perfect for functional parts subjected to severe thermal stresses.
  • Low deformation during printing: Ensures high precision and consistent quality throughout the printing process.
  • Good bed adhesion: Optimizes print quality, reducing the risks of detachment or warping.

Printing Tips

  • Extrusion temperature: 280-300°C for optimal filament fusion.
  • Bed temperature: 40-50°C for good first layer adhesion.
  • Printing speed: up to 300 mm/s.
  • Recommended nozzle: Use a hardened steel or ruby nozzle to prevent wear from abrasive carbon fibers. Metal hotend required for printing above 280°C.
  • Storage: Keep the filament in a dry environment. If exposed to humidity, dry the filament before use (100°C for 10 hours in a conventional oven or 18 hours at level 3 with the PolyDryer).
  • Post-print annealing: Annealing at 100°C for 10 hours improves the mechanical strength of the parts.
  • 🎯 We collaborate with businesses.
  • 📦 Stock in Europe
  • 🚚 Ships within 24 hours
  • 🔐 Secure payments
  • 🔙 14 days to change your mind
  • 📱 Need advices ? Contact technical support

A question? Need help? Contact us, it's a pleasure to help you.

✉️ Contact us

Our team is available from Monday to Friday, from 10 am to 12 pm and from 2 pm to 5 pm.

Specifications for Polymaker Fiberon™ PA6-CF20 Black - 1.75mm - 500g

Technologie / Produit

Technology
FDM
Material
PA
Visual aspect
Opaque
Diameter
1.75 mm
Sensitivity to humidity
Strong
Application
Prototyping, Production, Functional part
Odour
Yes
Harmful
Yes
Level of difficulty
Intermediate
Brand
Polymaker
Type of product
3D Filament
Colour
Black
Net weight
500 g

Valeurs techniques

Glass transition temperature
74 °C
Deflection temperature under load (0.45 MPa)
215 °C
Deflection temperature under load (1.8 MPa)
173 °C
Temperature VICAT
219,2 °C
Charpy
13 kJ/m²
Resistors
Mechanical engineering, Wear and tear
Tensile modulus
1523 Mpa
Flexural modulus
1068 MPa
Maximum elongation at break
3 %
Density
1.17 g/cm3

Extrusion

Nozzle type
Tempered steel, Ruby
Type of consumable
Non-proprietary filament (open system)
Min. plateau temperature
40 °C
Max. tray temperature
50 °C
Min. extrusion temperature
280 °C
Max. extrusion temperature
300 °C
Min. speed
30 mm/s
Max. speed
300 mm/s
Minimum nozzle diameter
0.5 mm
Bowden compatibility
Yes
Warping sensitivity
Average
AMS compatible
No

Équipements spécifiques

Closed printing enclosure
Yes
Filtration
HEPA, Coal

Installation / Prérequis

Type
Filament on spool
Box supplied
Yes
Coil material
Cardboard
