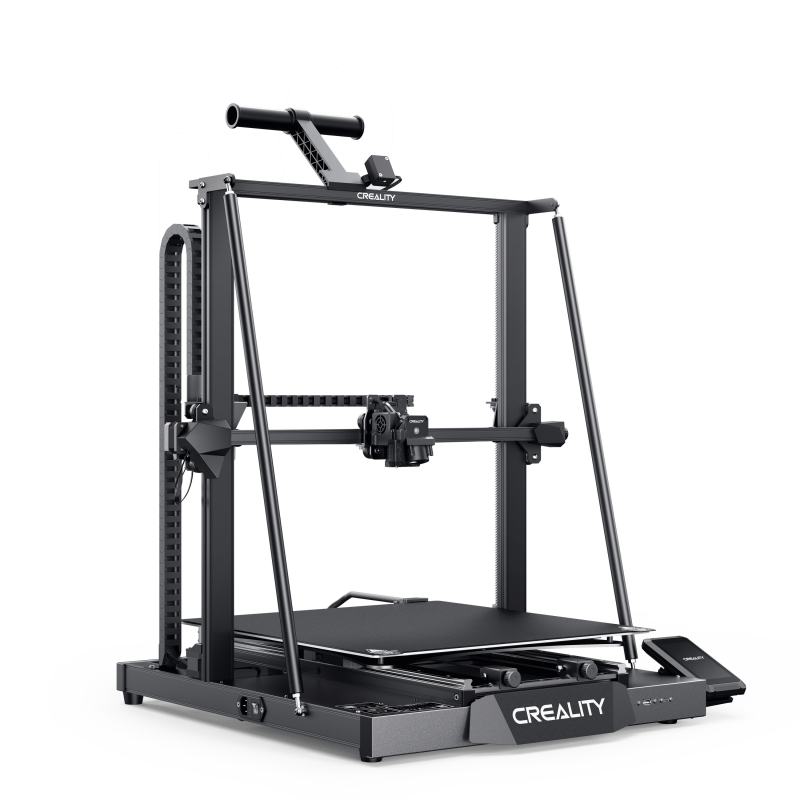

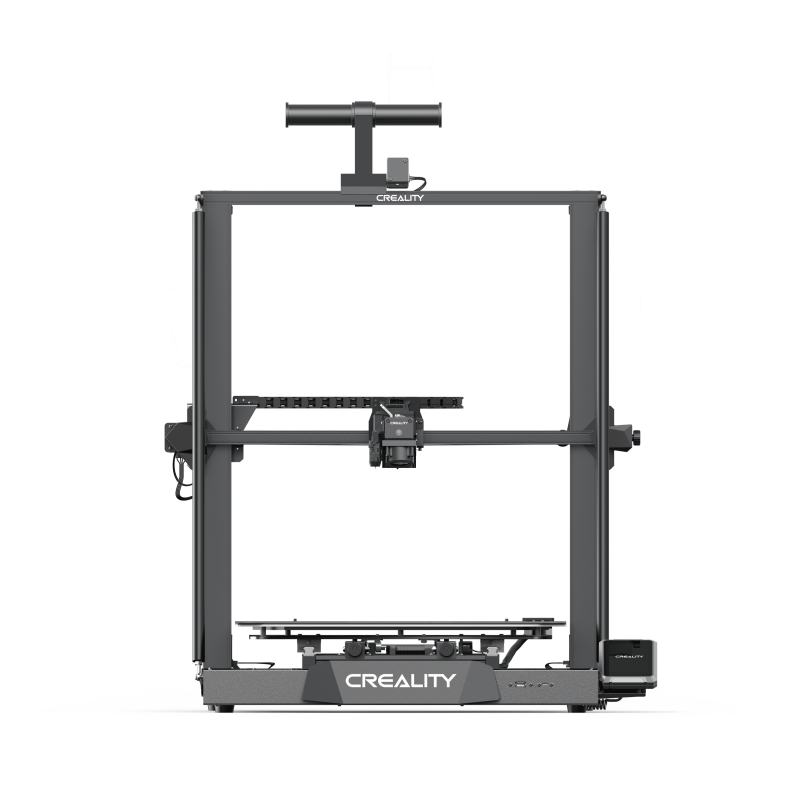

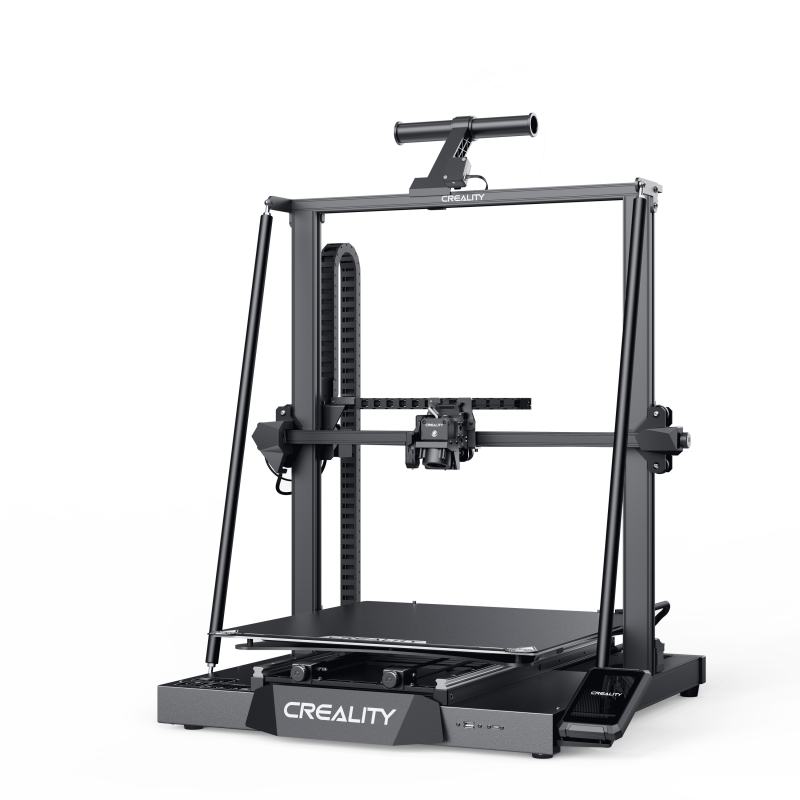

Creality CR-M4
This large-format 3D printer from Creality efficiently handles large projects. With its massive 450×450×470mm volume, the CR-M4 allows users to print larger, or batch print more parts in one go.
- Large build volume
- High-quality dual Y-axis linear rails
- More printing possibilities
- Sprite" double-speed direct extruder.
Sold out
The product is no longer available on our website.
However ✨, here is a new arrival and the product we recommend:
Delivery within 48/72 hours
Order before 1pm. Same day shipping
Free delivery
Free delivery near you from €69.90
Premium support
Our teams are on hand to answer all your questions
Over 2000 products
A wide choice of products from the biggest brands

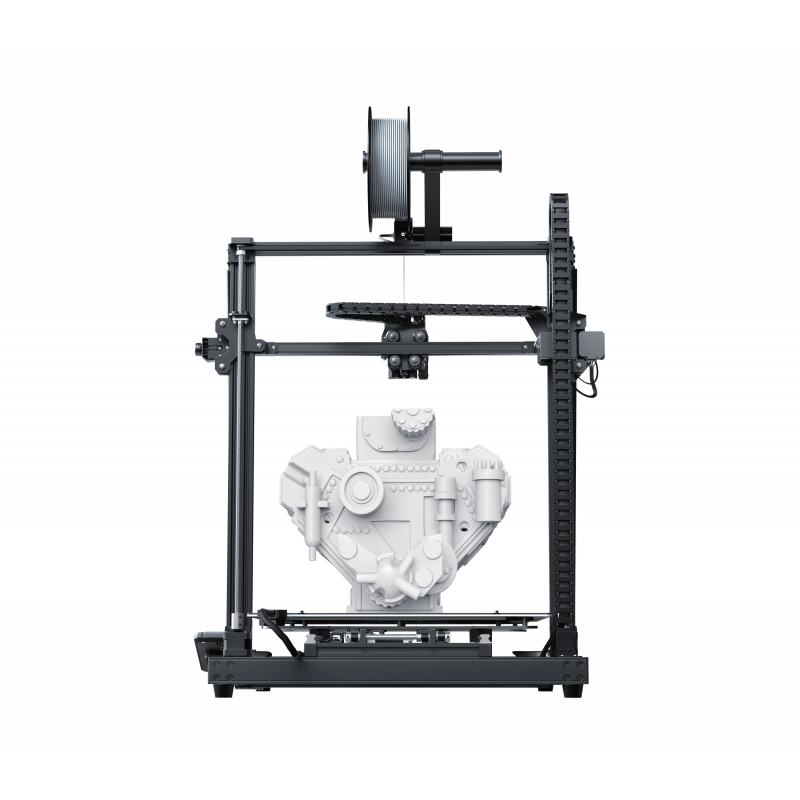

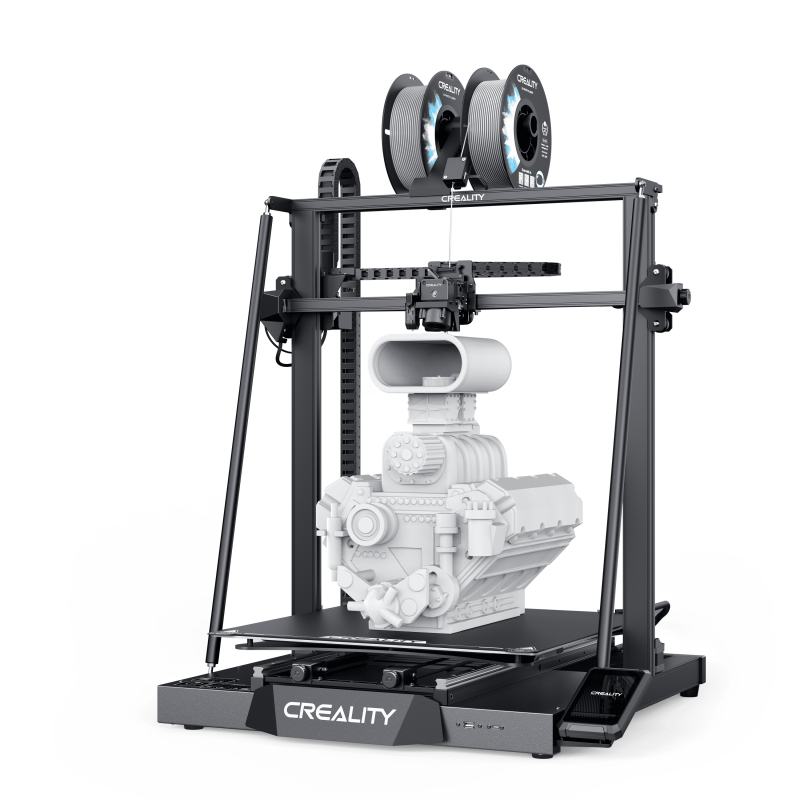

Large format printer Creality CR-M4
The CR-M4 printer from Creality is an assembly kit that lets you get close to very large format printing with its 450 x 450 x 470 mm usable volume, while offering unbeatable value for money. This top-of-the-range printer brings you all the latest technical innovations. This printer can be networked to form a print farm.
The strengths of the Creality CR-M4
The CR-M4 from Creality represents the brand's high-volume, high-temperature direct-drive printer, connected to Creality Cloud. The superb, versatile printhead gives the freedom to print with PLA, PA (nylon), heat-resistantABS, PLA-Wood, PLA-CF, flexible TPU and PETG.

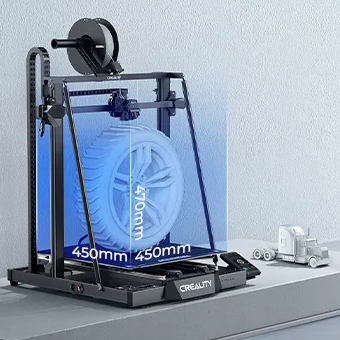

A larger construction volume
With its massive 450×450×470mm volume, the CR-M4 is a real beast for creating large or full-size models with less post-processing. The larger volume also allows more small models to be printed at once, making the printing process more efficient.

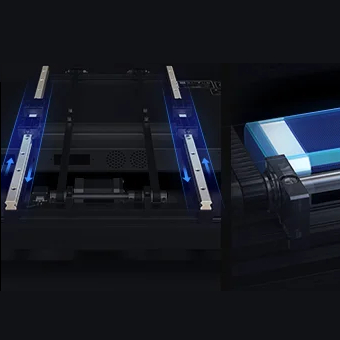

Two linear rails on the Y axis
Two precision CNC-machined linear rails optimise the table-top movements of the Y-axis, which is driven by a powerful and precise motor to operate accurately and smoothly. Made from steel, the rails are resistant to wear, blacklash and heavy loads. Much more reliable and durable than V-groove rails.

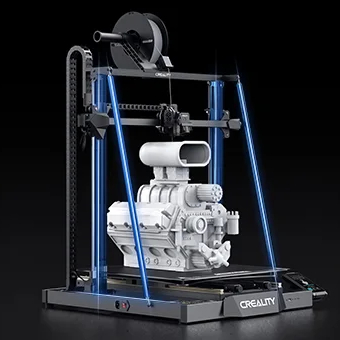

Less oscillation with the rigid Z-axis
The double Z-axis reduces gantry sagging and oscillation. Together with the 2 support rods, a rigid triangle is formed to stabilise the upper frame. Each Z-axis is driven by an independent motor for clean movement. From now on, the quality of large models is assured from bottom to top.

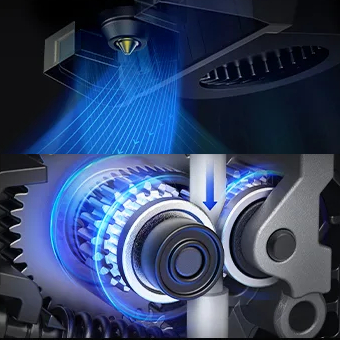

Sprite Direct Drive extruder
Sprite" all-metal direct drive extruder with dual gear design, delivering a powerful and uniform 80N extrusion force capable of reaching temperatures of 300°C. Ideal for extruding flexible filaments such as TPU.

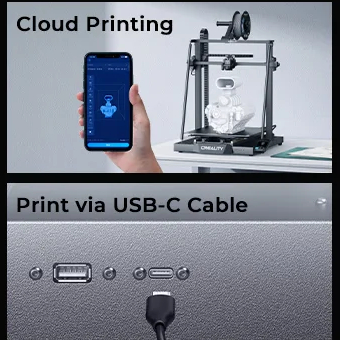

Connected printer
Print via USB, Type-C cable, RJ45 cable or WiFi. The printer comes with local network and cloud printing capabilities so users can start a 3D printing farm for volume production in no time.

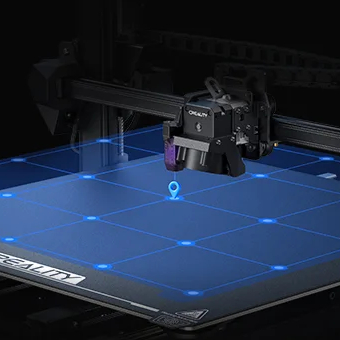

Magnetic platen and auto leveling
The PC coating ensures strong adhesion. The magnetic tray makes it easy to remove large models and won't warp after prolonged use. Fully automatic levelling with CR Touch by probing 25 points, and Z offset with 0.05 mm accuracy to quickly calibrate the distance between the nozzle and the construction surface.

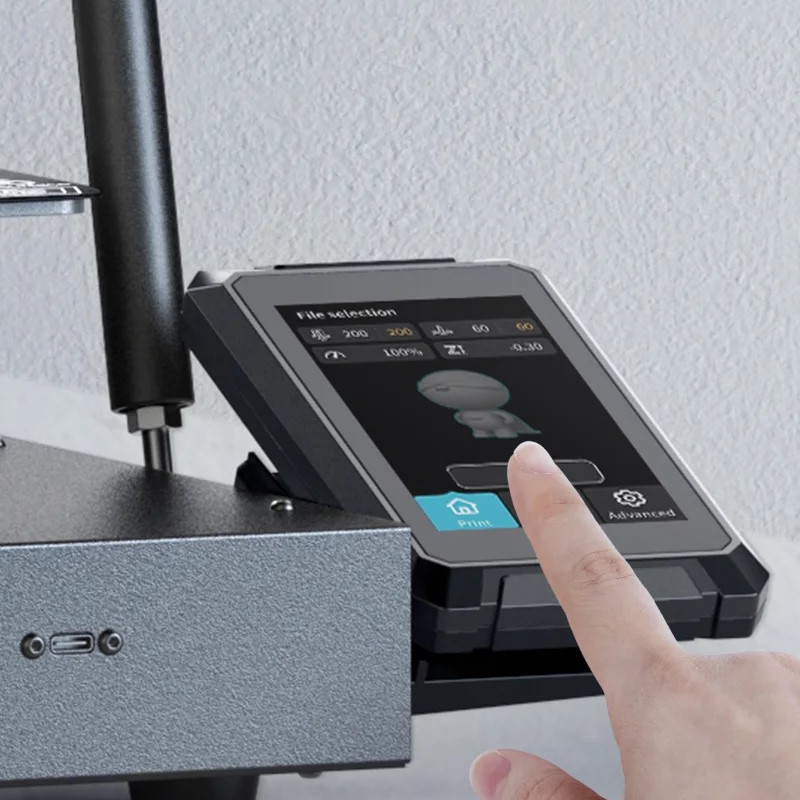

Colour display with simplified user interface
A 4.3" colour screen offers simple, responsive touch control, supporting pattern preview and PID temperature control. It turns off after 5 minutes of inactivity. Best of all, you can activate sleep mode to save energy.
Print volume
450 x 450 x 470 mm
Layer thickness (precision)
50 microns
Maximum speed
150 mm/s
Compatible materials
PLA, ABS , PETG, Flexible, Composites
- 🎯 We collaborate with businesses.
- 📦 Stock in Europe
- 🚚 Ships within 24 hours
- 🔐 Secure payments
- 🔙 14 days to change your mind
- 📱 Need advices ? Contact technical support
Specifications for Creality CR-M4
Technologie / Produit
- Technology
- FDM
- Print volume
- 450 x 450 x 470 mm
- Layer thickness (precision)
- 50 microns
- Maximum speed
- 150 mm/s
- Compatible materials
- PLA, ABS , PETG, Flexible, Composites
- Type of product
- 3D printer
- Range
- Semi-professional
Extrusion
- Filament diameter
- 1.75 mm
- Maximum extruder temperature
- 300 °C
- Number of extruders
- 1
- Nozzle type
- Brass
- Type of consumable
- Non-proprietary filament (open system)
- Type of extrusion
- Direct drive
Plateau chauffant
- Maximum plateau temperature
- 100 ºC
- Heated tray
- Yes
- Heating plate surface
- Buildtak
- Heating plate material
- Aluminium
- Heating plate fixing
- Magnetic
Équipements spécifiques
- Closed printing enclosure
- No
- Filtration
- No
- Closed filament chamber
- No
- End of filament sensor
- Yes
- Resuming after an outage
- Yes
- Camera
- No
Logiciel
- Operating system
- Windows, Mac OSX, Linux
- Data transfer
- SD card, USB, Ethernet
- Slicer
- Cura, Simplify
- Supported file type
- STL, OBJ, 3MF
- Supported format
- GCODE
- Also find this product Creality CR-M4 in these categories:
- Filament 3D printer
- Creality
- 3D printer
- Discovery and consumer 3D printers
- Large format 3D printer
- Direct drive 3D printer
- 3D printers Creality
Customer reviews about Creality CR-M4
Customer questions about Creality CR-M4
-
bonjour
elle sera dispo à quel date ?
merci
Seb seb • 18/04/2023-
Bonjour Monsieur, cette imprimante est disponible à l'achat et en stock dès aujourd'hui. Nous restons à votre disposition. Excellente journée. Stéphane • 19/04/2023
-
