Ultrafuse ABS Rouge BASF - 1.75mm - 750 g
Ultrafuse ABS Rouge BASF - 1.75mm - 750 g

Ultrafuse ABS Red BASF - 1.75mm - 750 g

Ref. ABS-0109a075

The Ultrafuse ABS Red BASF filament is a trusted option specially designed for robust, heat-resistant 3D printing.

It is available in two diameters: 1.75mm and 2.85mm, and comes in a 750g spool.

€23.99 excl. VAT

VAT at 0%, which is €23.99 TTC including tax.

In Stock Free shipping for orders over 39.9€

Ordered before 1:00 PM, delivered to your doorstep tomorrow!

À partir de 2, seulement €23.27 / unité. 3%

À partir de 5, seulement €22.79 / unité. 5%

À partir de 10, seulement €22.07 / unité. 8%

Delivery within 48/72 hours

Order before 1pm. Same day shipping

Free delivery

Free delivery near you from €69.90

Premium support

Our teams are on hand to answer all your questions

Over 2000 products

A wide choice of products from the biggest brands

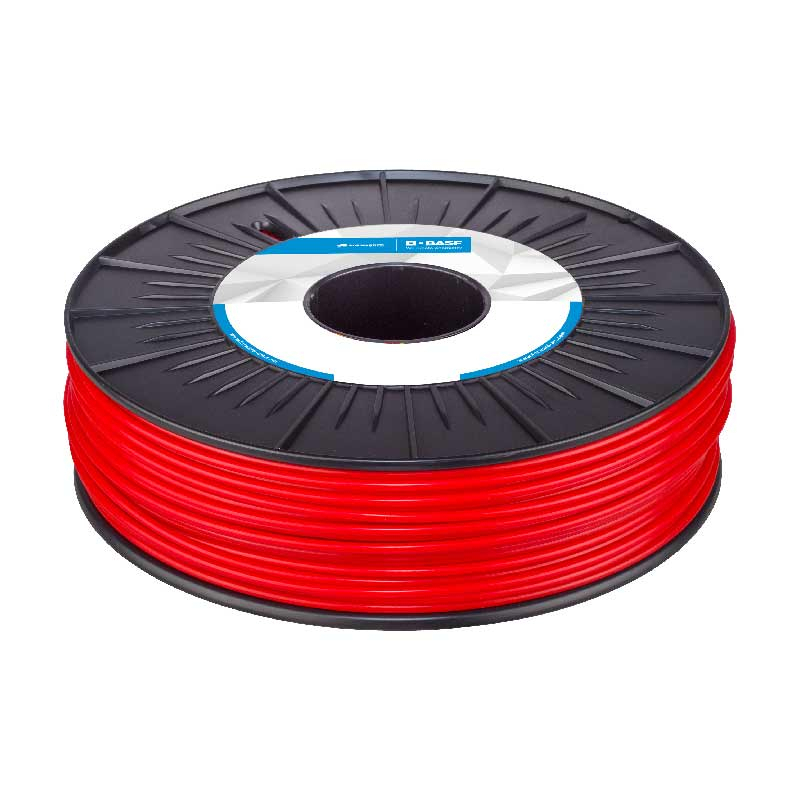

Filament Ultrafuse ABS Red BASF

Ultrafuse ABS Red BASF is a 3D filament renowned for its reliability, rigidity and heat resistance.

Its characteristics make it an ideal choice for printing robust parts requiring high strength or for engineering applications.

Ultrafuse ABS Red BASF: key strengths

The Ultrafuse ABS Red filament offers undeniable advantages:

Reliability: 3D printing with Ultrafuse ABS Red is renowned for its reliability and is thoroughly tested by BASF.

High heat resistance: This filament has an excellent ability to withstand high temperatures, making it ideal for applications requiring high heat resistance.

Rigidity and impact resistance:Ultrafuse ABS Red is a rigid 3D filament that offers remarkable impact resistance, making it a suitable choice for strong, durable parts.

Our recommendations for use with PLA Mat Red Forshape

For best results when printing Ultrafuse ABS Red filament, we recommend using an adhesive surface such as BlueTape, BuildTak support or 3D spray.

Make sure that your 3D printer is equipped with a heating plate, as the temperature of the plate should be set between 80 and 100°C.

In addition, for filament extrusion, make sure you set the print temperature in the 230 to 250°C range. Please note thatUltrafuse ABS Rouge is compatible with 3D printers that support 1.75mm or 2.85mm filaments and are equipped with a heating plate.

Before placing an order, make sure your 3D printer is compatible with this filament by checking the manufacturer's technical specifications. This will ensure successful printing and optimum results.

  • 🎯 We collaborate with businesses.
  • 📦 Stock in Europe
  • 🚚 Ships within 24 hours
  • 🔐 Secure payments
  • 🔙 14 days to change your mind
  • 📱 Need advices ? Contact technical support

Specifications for Ultrafuse ABS Red BASF - 1.75mm - 750 g

Technologie / Produit

Technology
FDM
Material
ABS
Visual aspect
Opaque, Smooth alcohol
Diameter
1.75 mm
Sensitivity to humidity
Low
Application
Prototyping, Production, Functional part
Odour
Yes
Harmful
Yes
Level of difficulty
Intermediate
Brand
BASF
Type of product
3D Filament
Colour
Red
Net weight
750 g

Valeurs techniques

Glass transition temperature
104 °C
Deflection temperature under load (0.45 MPa)
96 °C
Deflection temperature under load (1.8 MPa)
91 °C
Izod
40 kJ/m² of energy
Charpy
36 kJ/m² of energy
Resistors
Mechanical engineering
Tensile modulus
1958 Mpa
Flexural modulus
1833 MPa
Tensile yield strength
36 MPa
Maximum elongation at break
7.4 %
Density
1.04 g/cm3

Extrusion

Nozzle type
Brass
Type of consumable
Non-proprietary filament (open system)
Min. plateau temperature
90 °C
Max. tray temperature
110 °C
Min. extrusion temperature
240 °C
Max. extrusion temperature
260 °C
Min. speed
40 mm/s
Max. speed
80 mm/s
Minimum nozzle diameter
0.2 mm
Bowden compatibility
Yes
Warping sensitivity
Strong
AMS compatible
No

Équipements spécifiques

Closed printing enclosure
Yes
Filtration
HEPA, Coal

Installation / Prérequis

Type
Filament on spool
Box supplied
Yes
Coil material
Plastic
