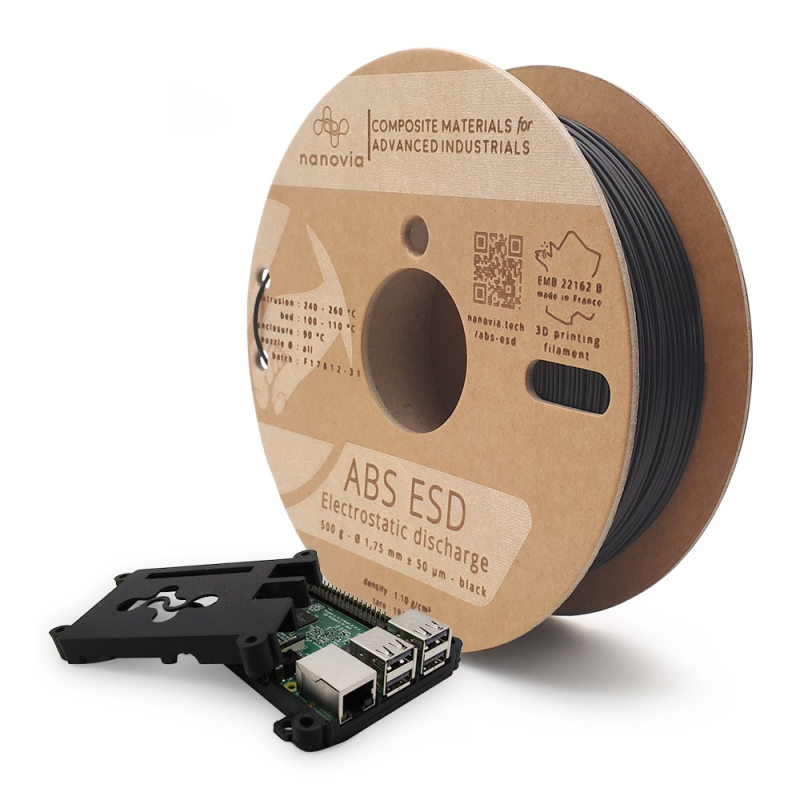

Nanovia ABS ESD (anti-static) - 1.75mm - 500 g
Ref. naabsed1050bk
The ABS ESD filament from Nanovia is specially manufactured with a blend ofABS and carbon black to protect your equipment sensitive to electrostatic discharges. This filament Nanovia ABS ESD filament is ideal for use in electronics or electricity thanks to its properties.
€49.50 excl. VAT
VAT at 0%, which is €49.50 TTC including tax.
Ordered before 1:00 PM, delivered to your doorstep tomorrow!
Delivery within 48/72 hours
Order before 1pm. Same day shipping
Free delivery
Free delivery near you from €69.90
Premium support
Our teams are on hand to answer all your questions
Over 2000 products
A wide choice of products from the biggest brands
Use of ABS ESD filament Nanovia

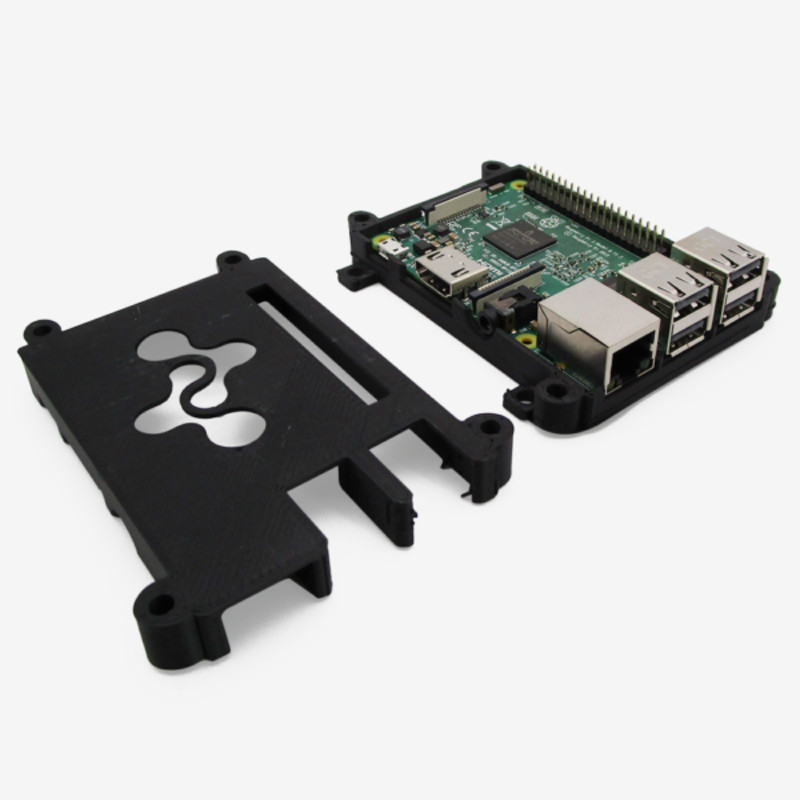

The filament Nanovia ABS ESD filament is a base material ABS enriched with conductive carbon black, giving it this characteristic ESD (ElecroStatic Discharge). This composite filament offers excellent printing characteristics with limited shrinkage and good platen adhesion. The ESD version ofABS is used in applications requiring good protection against electrostatic shock. Certain electronic parts or electrical connectors can be manufactured with this filament.
The other advantage of this ABS ESD filament is that it is less sensitive to delamination than a standard ABS and is just as resistant mechanically and thermally.
ABS ESD Nanovia key features
Protection from electrostatic discharges: The ABS ESD filament is recognised for its volume resistivity properties, which are suitable for sensitive environments.
Mechanical resistance: ABS filament is renowned for its good general resistance, and this remains true for this ESD version.
Good temperature resistance: With a glass transition temperature of 100°C, this ABS ESD filament is suitable for demanding environments.
Our recommendations for use withABS ESD
This ABS base material requires the same care as a traditional ABS. However, it is less sensitive to delamination, which is the main problem when printingABS without a heated enclosure.
We recommend using a suitable adhesive, a closed enclosure, a 90°C temperature plateau and a steel nozzle to get the full performance from this ABS carbon composite.
AsABS and the aramid fibres are UV-sensitive, plan to have them painted for outdoor use.
- 🎯 We collaborate with businesses.
- 📦 Stock in Europe
- 🚚 Ships within 24 hours
- 🔐 Secure payments
- 🔙 14 days to change your mind
- 📱 Need advices ? Contact technical support
Specifications for Nanovia ABS ESD (anti-static) - 1.75mm - 500 g
Technologie / Produit
- Technology
- FDM
- Material
- ABS
- Visual aspect
- Opaque, Smooth alcohol
- Made in France
- Yes
- Diameter
- 1.75 mm
- Sensitivity to humidity
- Low
- Application
- Prototyping, Production, Functional part
- Odour
- Yes
- Harmful
- Yes
- Level of difficulty
- Intermediate
- Brand
- Nanovia
- Type of product
- 3D Filament
- Colour
- Black
- Net weight
- 500 g
Valeurs techniques
- Glass transition temperature
- 100 °C
- Deflection temperature under load (1.8 MPa)
- 88 °C
- Charpy
- 18 kJ/m² of energy
- Specific properties
- ESD / Conductive
- Resistors
- Mechanical engineering
- Tensile modulus
- 1900 Mpa
- Tensile yield strength
- 43 MPa
- Maximum elongation at break
- 10 %
- Density
- 1.1
Extrusion
- Nozzle type
- Stainless steel
- Type of consumable
- Non-proprietary filament (open system)
- Min. plateau temperature
- 90 °C
- Max. tray temperature
- 100 °C
- Min. extrusion temperature
- 250 °C
- Max. extrusion temperature
- 270 °C
- Min. speed
- 50 mm/s
- Max. speed
- 70 mm/s
- Minimum nozzle diameter
- 0.4 mm
- Bowden compatibility
- Yes
- Warping sensitivity
- Strong
- AMS compatible
- No
Équipements spécifiques
- Closed printing enclosure
- Yes
- Filtration
- HEPA, Coal
Installation / Prérequis
- Type
- Filament on spool
- Box supplied
- Yes
- Coil material
- Plastic
