Revopoint MetroX Advanced Edition

MetroX scanner Advanced Edition, metrological accuracy by Révopoint

The Revopoint MetroX Advanced Edition is a high-precision 3D scanner designed for professionals who require high accuracy. metrological results. Thanks to its innovative hybrid technology combining blue laser and structured light, It offers exceptional accuracy, reaching up to 0.03 mm, and an image precision of 0.01 mm.

This versatility allows for capturing objects of small to medium size with ease. remarkable loyalty, thus meeting the diverse needs of sectors such as reverse engineering, quality control, additive manufacturing, and rapid prototyping. Its compact design and intuitive interface They make it easy to use, whether in manual mode or on a turntable, making the scanning process both efficient and accessible.

Advanced Edition of the MetroX by Revopoint

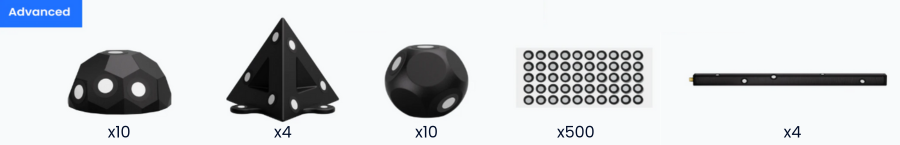

The MetroX scanner in its Advanced Edition comes with a set of magnetic (and adhesive) markers. These markers are used to improve scanning accuracy by providing additional information to the scanner.

Revopoint MetroX Advanced Edition, a professional tool

The Revopoint MetroX is ideal for a multitude of professional applications. In reverse engineering, it allows for the faithful reproduction of existing parts for analysis or future improvements. In the field of quality control, its precision ensures the detection of the slightest defects in manufactured products.

For additive manufacturing and rapid prototyping, it facilitates the creation of detailed 3D models., accelerating the development Furthermore, it finds its place in architecture for the precise modeling of complex structures and in heritage preservation for the digitization of cultural artifacts.

Multiple scanning modes

The MetroX offers four scanning modes distinct to fit various surfaces and details.

Crossed lines

This mode uses 14 crossed blue laser lines To effectively capture flat or low-detail surfaces, including objects with Bright or dark definitions, without requiring scanning spray. With a capture capacity of up to 800,000 points per second, it ensures fast and accurate digitization.

Parallel lines

In Deploying 7 parallel blue laser lines, this mode is ideal for capturing the finest details on complex surfaces. It ensures accurate scanning of 3D models, capturing the Subtleties of objects with great loyalty.

Structured blue light full field

This mode uses 62 lines of structured blue light to effectively capture large and homogeneous objects, containing a high or low number of details. It allows capturing up to 7 million points per second, offering smooth scanning without the addition of markers in just a few seconds.

Automated turntable

Associated with the two-axis turntable, This mode frees the user without any manual intervention. With just one click, it is possible to obtain a perfect digital scan of the object. The platform and the scanner work simultaneously, fully automating the process scanning.

Features of the Revopoint MetroX Advanced Edition

The MetroX stands out for its wide range of offerings advanced features, each designed to optimize the scanning experience based on the specific needs of users.

Metrological precision

The MetroX offers a unique image precision. up to 0.01 mm, an accuracy up to 0.03 mm and a volumetric precision of 0.03 mm + 0.1 mm x L (length of the object in meters). Accuracy ensures a detailed capture. and faithful 3D objects, meeting the requirements of the most demanding professional applications.

HD RGB camera for color scans

Equipped with an HD RGB camera, the MetroX scanner allows for... capture realistic scans and precise colors in automated turntable mode. This functionality is essential for applications requiring a faithful reproduction of colors, such as heritage preservation or product modeling.

4-button control system

The MetroX is equipped with a Intuitive 4-button control system, making it easier to start, pause, and adjust the camera distance during scanning. This simplified user interface enhances the efficiency of the scanning process, making the device accessible even to novice users.

Flexible tracking modes

The scanner suggests three tracking modes to adapt to different object characteristics:

• Feature: Ideal for objects rich in details, this mode uses the object's natural characteristics for tracking.
• Marker : For object-specific capture, this mode requires the application of markers on the object's surface to improve tracking accuracy.
• Global Marker : Offering improved volumetric precision, this mode is particularly useful for large objects or those with few distinctive features.

Use of the Revopoint MetroX Advanced Edition

The Revopoint MetroX is designed to offer a optimal user experience. Its intuitive interface and 4-button control system simplify the scanning process, allowing users to start quickly and easily adjust settings according to their needs. Combined with the Revo Scan 5 MetroX software, The scanning process and their processing are done in a simple and smooth manner.

Operating system compatibility and setup

The scanner is compatible with Windows 10/11 (64-bit) and macOS 11.0 or later operating systems, ensuring seamless integration into various work environments. Supported output file formats include PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX, facilitating the export and use of 3D models in various third-party software. The installation is quick and straightforward, allowing users to Start digitizing without delay.

Our opinion on it Revopoint MetroX Advanced Edition

The Revopoint MetroX is impressive with its combination of precision, versatility, and ergonomics in use. Its multiple scanning modes and its ability to recognize different types of markers It becomes a tool adaptable to various professional applications. Associated with the software power, The MetroX's hardware performance makes it a solid choice for professionals looking for a reliable and accurate 3D scanning solution.

This Advanced Edition, more complete, allows you to directly benefit from marking elements that facilitate scanning. These magnetic elements (28 elements of different sizes) and adhesive markers will help the MetroX scanner navigate more easily, thereby increasing scan precision and accuracy.
