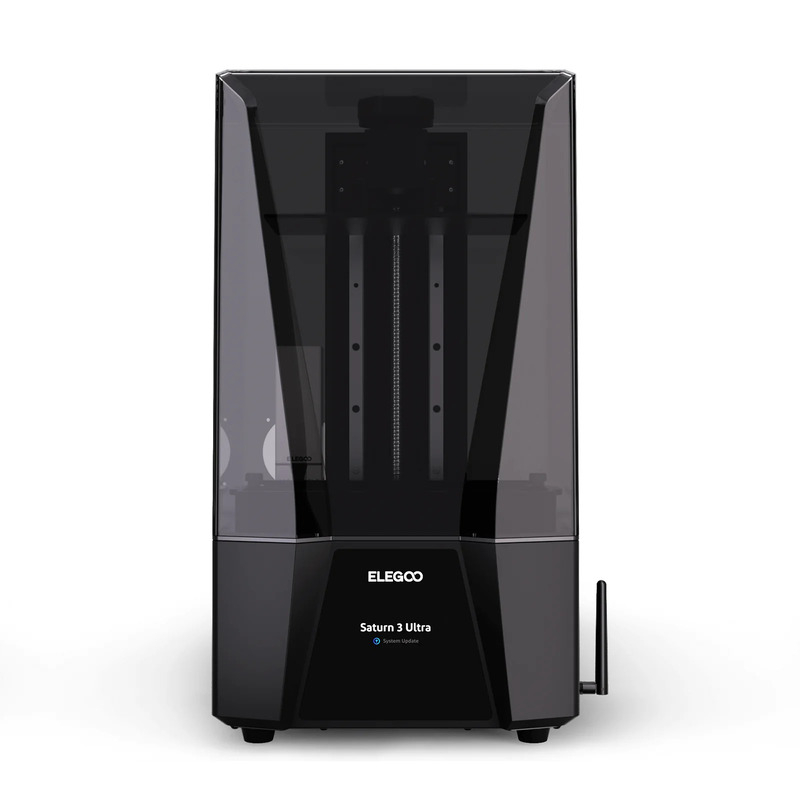

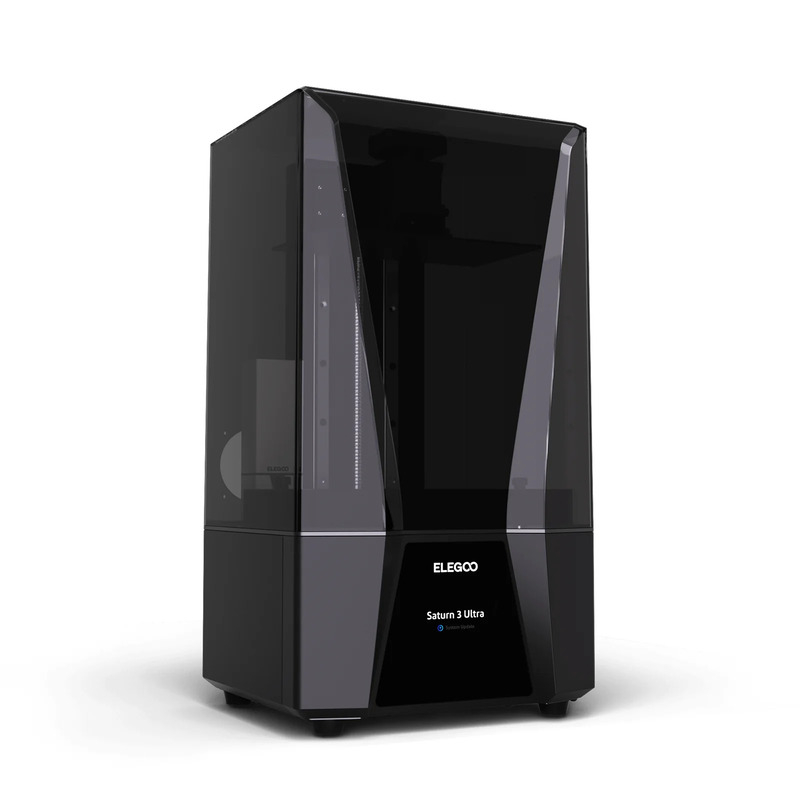

Elegoo Saturn 3 Ultra
Elegoo Saturn 3 Ultra

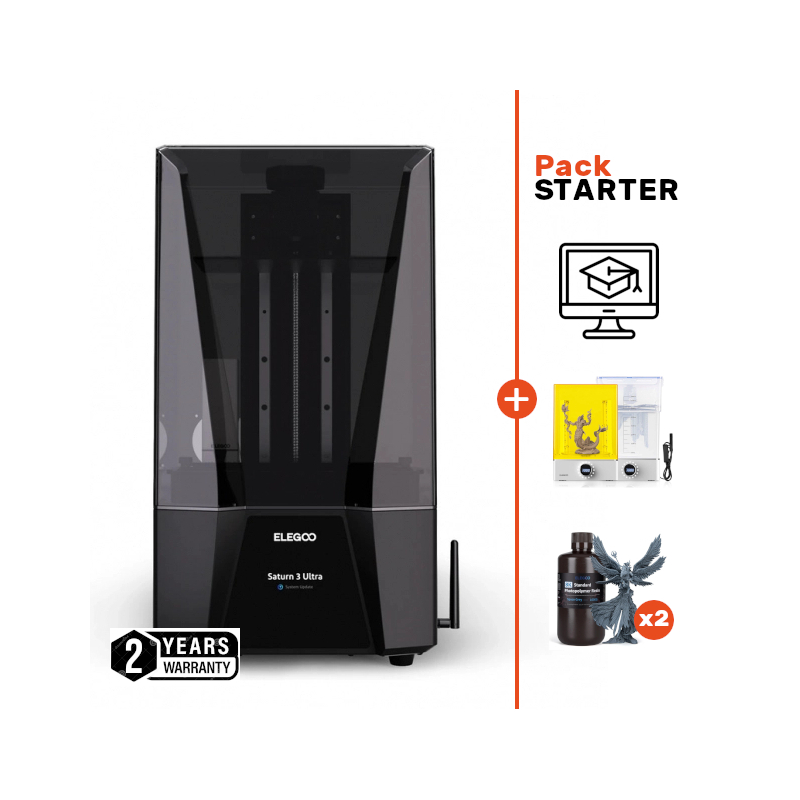

Starter Pack Elegoo Saturn 3 Ultra

Ref. 50.101.034300-PS

The Elegoo Saturn 3 Ultra Starter Pack gets you off to a flying start with all the essential equipment, plus resins and a post-processing station to help you make your first prints.

  • Very high resolution 11,520 x 5,120 (12K)
  • Very high print speed (150 mm/h)
  • Activated carbon air purification system
  • Fresnel Collimating light source
Exclusive: With every purchase of this printer on our website, we offer you a training video on how to get to grips with your equipment and how to optimise it to make the most of your machine's potential.
€716.58 excl. VAT

VAT at 0%, which is €716.58 TTC including tax.

Out of stock Free shipping

Delivery within 48/72 hours

Order before 1pm. Same day shipping

Free delivery

Free delivery near you from €69.90

Premium support

Our teams are on hand to answer all your questions

Over 2000 products

A wide choice of products from the biggest brands

Elegoo Saturn 3 Ultra - Ultimate speed and precision

The Elegoo Saturn 3 Ultra is the latest, improved version of the Saturn and Saturn 2, offering enhanced precision and advanced functionality. It features a 10-inch LCD monochrome screen with 12K resolution, which is an improvement on the 8K screen of the Saturn 2. This higher resolution allows for larger and more accurate prints.

What's more, the Saturn 3 Ultra offers an extended print volume, providing ample space for large prints.
As anMSLA 3D printer, it combines precision with large-format printing capacity.

The 2 main differences with the Saturn 3 are that the Saturn 3 Ultra has a speed of 150 mm/h and a WIFI connection.

In addition to USB, the Saturn 3 Ultra offers Wi-Fi connectivity, supporting 2.4G and 5G networks. This enables files to be transferred at speeds of between 6 and 10 M/s from a smartphone or PC. What's more, the printer has a detachable antenna on the right-hand side.

Benefits of the Elegoo Saturn 3 Ultra

The ELEGOO Saturn 3 Ultra is a high-speed resin 3D printer that offers a quality introduction to professional resin 3D printing. Let's take a closer look at the features of this printer to get a better idea of its capabilities.

Elegoo Saturn 3 - Écran 12K

10-inch 12K monochrome screen LCD

Thanks to its LCD monochrome 10" 12K screen, the Saturn 3 Ultra allows high print speeds without compromising detail, even for high print volumes. Its resolution of 11520 x 5120 makes all the subtle details of the 3D object perfectly visible. What's more, the sophisticated cooling system ensures extended screen life LCD, while a pre-installed hardened protective film (9H) offers additional protection against impact.

Elegoo Saturn 3 - volume d'impression - 219 x 122 x 250 mm

Large print volume

With a generous print volume of 219 x 123 x 260 mm and a large 10-inch monochrome LCD screen, the ELEGOO Saturn 3 Ultra offers the ability to print larger prototypes and achieve higher curing efficiency. This allows you to produce larger models or several smaller models in a single print session, improving your productivity and expanding your creative possibilities.

Elegoo Saturn 3 - double axe Z

High stability

The Saturn 3 Ultra is equipped with two linear guides along the Z axis, ensuring high stability and smooth movement of the print platen. This design ensures high precision and reliability when printing. What's more, this MSLA 3D printer offers impressive Z-axis resolution of up to 0.00125 mm. This high precision means you can create objects with fine detail and a high-quality finish.

Elegoo Saturn 3 - source lumineuse

Collimating Fresnel light source

The Saturn 3 Ultra is equipped with a Fresnel collimating light source consisting of 64 highly integrated UV LEDs. These LEDs work in synchronisation with the Fresnel lens of the FCL system to produce a uniform beam of light at a wavelength of 405 nm. This configuration ensures exceptional print accuracy and a smoother surface finish on printed models. Thanks to this advanced feature, the most delicate details of your designs will be perfectly reproduced with great accuracy.

Elegoo Saturn 3 - filtration à charbon actif

Odour-free printing environment

The Saturn 3 Ultra is equipped with an air filtration system that includes an activated carbon filter. This filter is designed to absorb most of the resin odours generated during the printing process. Thanks to this feature, the printer provides a fresh, odour-free printing environment, improving your comfort and allowing you to work in a pleasant space. This is particularly important when using the printer in enclosed or shared environments.

Elegoo Saturn 3 - protection verre trempé

Screen protection with tempered glass

The Saturn 3 Ultra is equipped with scratch-resistant tempered glass with a hardness of 9H, which is replaceable. This glass adapts perfectly to the printer's screen, offering effective protection against potential scratches. Not only does it protect the screen from damage, it also preserves print detail by ensuring a smooth, transparent surface. If the glass becomes worn or scratched, it can be easily replaced, extending the life of your printer and maintaining optimum print quality.

Elegoo Saturn 3 - film PFA

A metal tray with PFA film

PFA (Polymer Film Assist) technology makes it easy to remove printed models from the ELEGOO Saturn 3 Ultra, while reducing release tension. This technology makes it easier for the models to detach from the printing plate, simplifying the post-processing process. Reducing the release tension helps to minimise the risk of distortion or damage when removing the templates, ensuring more reliable results and better print quality.

Resins compatible with Elegoo Saturn 3 Ultra

We recommendusing 8K resins from Elegoo or Forshape. For example, the Grey 8K resin from Forshape is very high quality and very affordable, and will produce prints with a very high level of detail.

You can still use a standard resin, but you won't be able to obtain the highest level of detail.

Our opinion of the Elegoo Saturn 3 Ultra

If you're looking for a resin 3D printer that combines high speed with 12K resolution, the Elegoo Saturn 3 Ultra is an excellent choice.

In addition to its advanced features, it offers quality support and availability of spare parts. This means you can enjoy reliable after-sales service and easily find the spare parts you need. With these additional benefits, the Elegoo Saturn 3 Ultra guarantees a complete and satisfying user experience.

Polyfab3D , as an official retailer of the Elegoo brand in France, is there to support you every day!

Print volume

219 x 123 x 260 mm

Layer thickness (precision)

10 microns

  • 🎯 We collaborate with businesses.
  • 📦 Stock in Europe
  • 🚚 Ships within 24 hours
  • 🔐 Secure payments
  • 🔙 14 days to change your mind
  • 📱 Need advices ? Contact technical support

Specifications for Starter Pack Elegoo Saturn 3 Ultra

Technologie / Produit

Technology
DLP
Print volume
219 x 123 x 260 mm
Layer thickness (precision)
10 microns
X/Y resolution
19x24µm
Material
Resin Tough, Flexible resin, Dental Resin, Standard resin
Brand
Elegoo
Type of product
3D printer

Extrusion

Type of consumable
Non-proprietary resin
Max. speed
70 mm/s

Polymérisation / Résine

Wavelength
405 nm
Automatic bin filling
No
Changes to the EFF
Yes

Équipements spécifiques

Filtration
Yes
Touch screen
Yes

Logiciel

Data transfer
USB, Wifi
Slicer
Chitu DLP Slicer, Lychee Slicer
