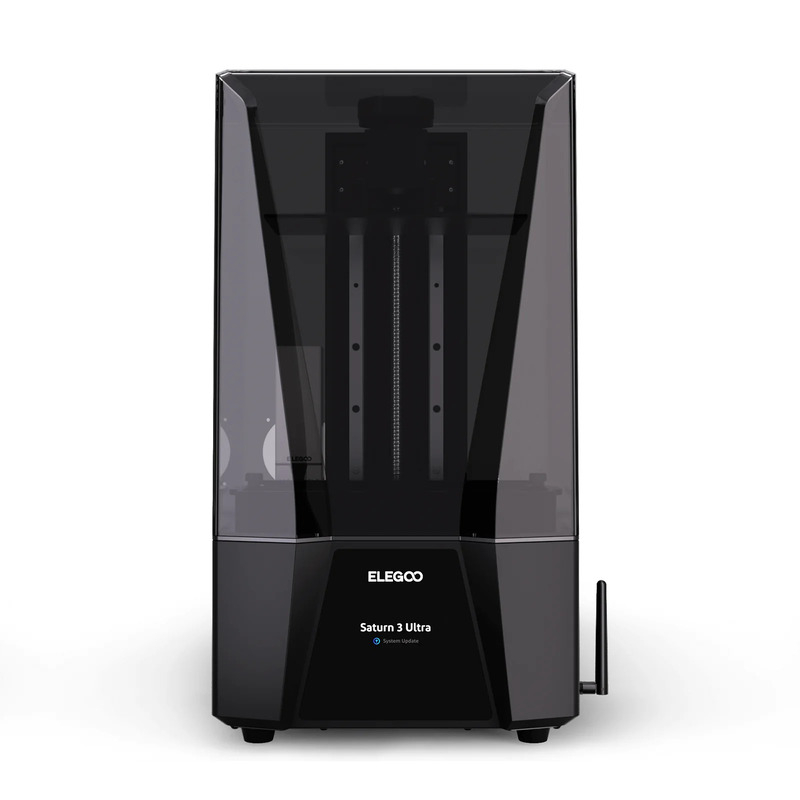

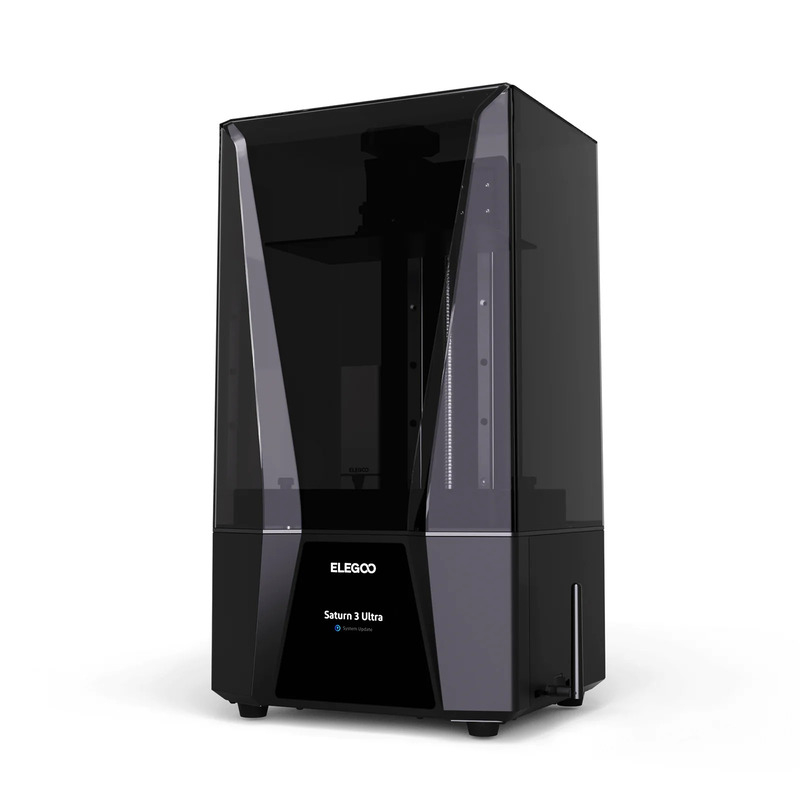

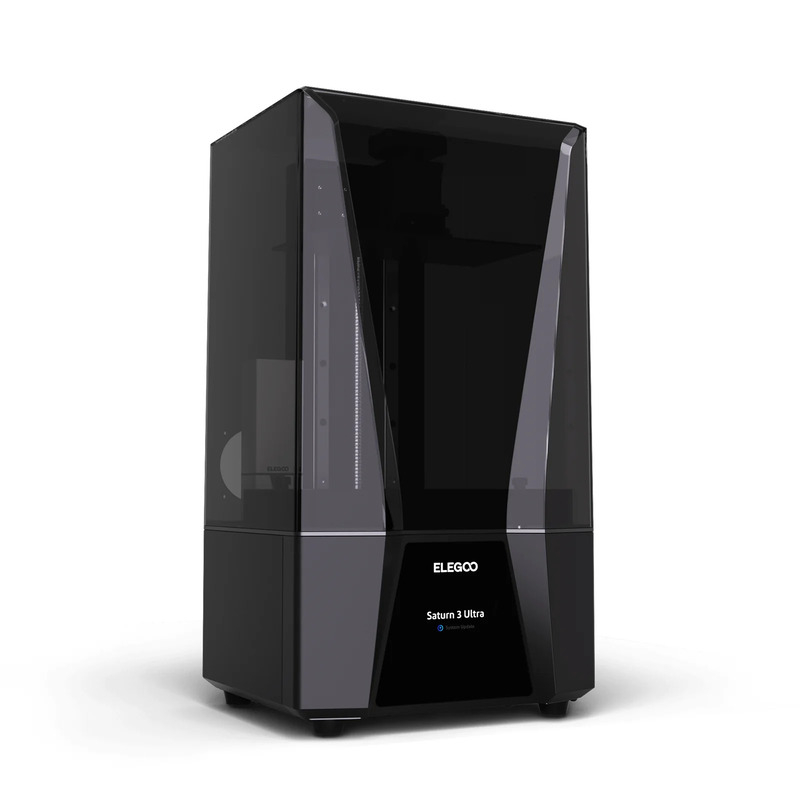

Elegoo Saturn 3 Ultra

Elegoo Saturn 3 Ultra - Ultimate speed and precision

The Elegoo Saturn 3 Ultra is the enhanced version of the Saturn and Saturn 2, offering greater precision and advanced functionality. It features a 10-inch monochrome LCD screen with 12K resolution, which is an improvement on the Saturn 2's 8K screen. This higher resolution enables larger, more accurate prints.

What's more, the Saturn 3 Ultra offers an extended print volume, providing ample space for large prints. As an MSLA 3D printer, it combines precision with large-format printing capability.

The 2 main differences with the Saturn 3 are that the Saturn 3 Ultra has a speed of 150 mm/h and a WIFI connection.

In addition to USB, the Saturn 3 Ultra offers Wi-Fi connectivity, supporting 2,4G and 5G networks. This enables files to be transferred from a smartphone or PC at speeds ranging from 6 to 10 M/s. What's more, the printer is equipped with a detachable antenna on the right-hand side.

Advantages of the Elegoo Saturn 3 Ultra

The ELEGOO Saturn 3 Ultra is a high-speed resin 3D printer that offers a quality introduction to professional resin 3D printing. Let's take a closer look at this printer's features and capabilities.

10-inch 12K monochrome LCD screen

Thanks to its 10" 12K monochrome LCD screen, the Saturn 3 Ultra enables high print speeds without compromising detail, even for large print volumes. Its 11520 x 5120 resolution makes all the subtle details of the 3D object perfectly visible. What's more, the sophisticated cooling system ensures extended LCD screen life, while a pre-installed hardened protective film (9H) offers additional protection against impact.

Large print volume

Thanks to its generous 219 x 123 x 260 mm print volume and large 10" monochrome LCD screen, the ELEGOO Saturn 3 Ultra offers the possibility of printing larger prototypes and achieving higher curing efficiency. This enables you to produce larger models or several smaller ones in a single print session, improving your productivity and expanding your creative possibilities.

High stability

The Saturn 3 Ultra is equipped with two linear guides along the Z axis, ensuring high stability and smooth movement of the printing plate. This design ensures high precision and reliability during printing. What's more, this MSLA 3D printer offers impressive Z-axis resolution of up to 0.00125 mm. This high level of precision enables you to create objects with fine detail and a high-quality finish.

Collimating Fresnel light source

The Saturn 3 Ultra is equipped with a Fresnel collimating light source consisting of 64 highly integrated UV LEDs. These LEDs work in synchronization with the Fresnel lens of the FCL system to produce a uniform beam of light at a wavelength of 405 nm. This configuration guarantees exceptional printing accuracy and a smoother surface finish on printed models. Thanks to this advanced feature, the most delicate details of your creations will be perfectly reproduced with great precision.

Odorless printing environment

The Saturn 3 Ultra is equipped with an air filtration system that includes an activated carbon filter. This filter is designed to absorb most of the resin odors generated during the printing process. Thanks to this feature, the printer provides a fresh, odor-free printing environment, enhancing your comfort and enabling you to work in a pleasant space. This is particularly important when using the printer in enclosed or shared environments.

Screen protection with tempered glass

The Saturn 3 Ultra is equipped with a scratch-resistant tempered glass with a hardness of 9H, which is replaceable. This glass adapts perfectly to the printer's screen, offering effective protection against potential scratches. Not only does it protect the screen from damage, it also preserves print details by ensuring a smooth, transparent surface. In the event of wear or scratches on the glass, it can be easily replaced, prolonging the life of your printer and maintaining optimum print quality.

A metal tray with PFA film

PFA (Polymer Film Assist) technology facilitates the removal of printed models from the ELEGOO Saturn 3 Ultra, while reducing release tension. Thanks to this technology, models detach more easily from the printing plate, simplifying the post-processing process. Reduced release tension helps minimize the risk of deformation or damage when removing the templates, ensuring more reliable results and better print quality.

Compatible resins for Elegoo Saturn 3 Ultra

We recommend the use of 8K resins from Elegoo or Forshape. For example, Forshape 8K Grey resin is very high quality and affordable, and will produce prints with a very high level of detail. Using a standard resin is still possible, but won't give you the highest level of detail.

Our opinion on the Elegoo Saturn 3 Ultra

If you're looking for a resin 3D printer combining high speed and 12K resolution, the Elegoo Saturn 3 Ultra is an excellent choice. In addition to its advanced features, it offers quality support and spare parts availability. So you can benefit from reliable after-sales service and easily find the spare parts you need. With these added benefits, the Elegoo Saturn 3 Ultra guarantees a complete and satisfying user experience.

As an official Elegoo dealer, Polyfab3D is at your side every day!
