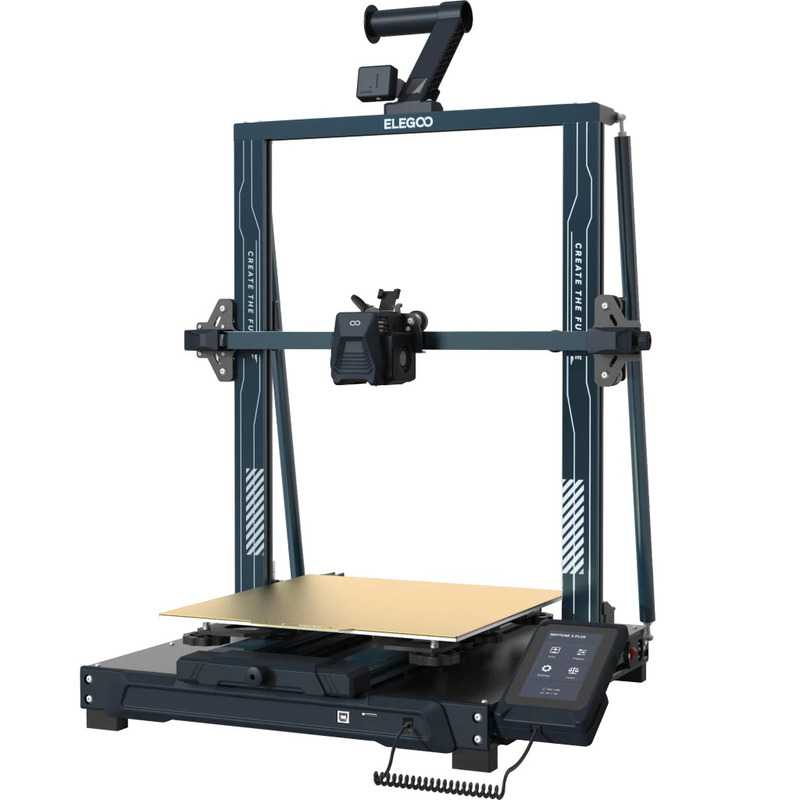

Elegoo Neptune 3 Plus

Elegoo Neptune 3 Plus - Simple and efficient

The FDM Neptune 3 Plus printer fromElegoo is a high-performance machine with a large printing capacity. With its large 320 x 320 x 400 mm printing plate, it can handle large print sizes. It has a sleek, modern design and is highly intuitive to use.

The benefits of Elegoo Neptune 3 Plus

This FDM large-format 3D printer is an excellent choice for home use. Let's take a closer look at its features.

Ready to use and fully assembled

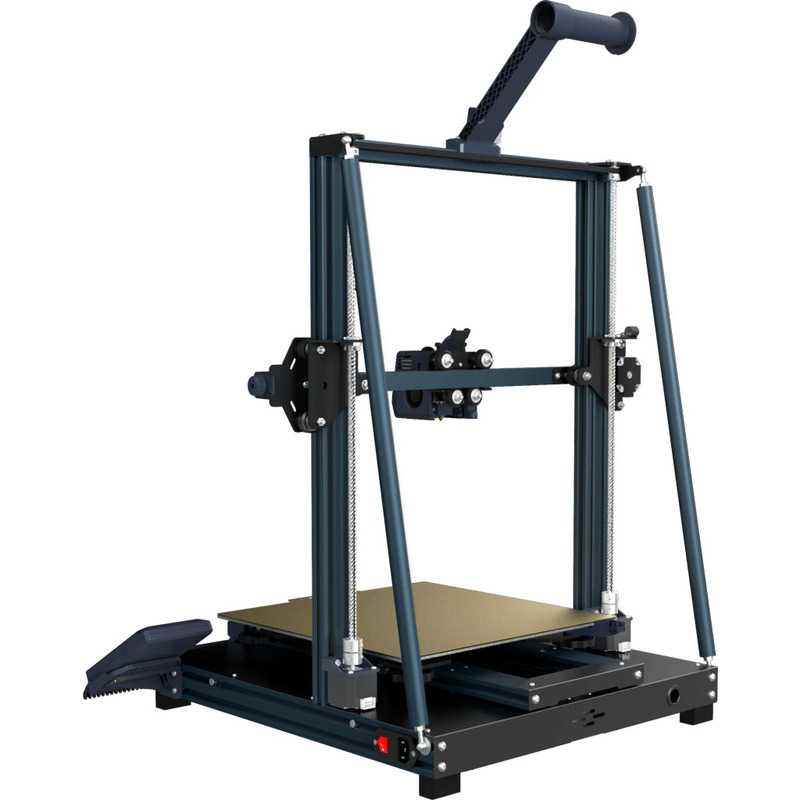

The portal structure of the Neptune 3 Plus gives it a practical and elegant design. Its plastic casing gives it a total weight of 14.2 kg, making it a relatively light 3D printer that's easy to deplamocate.

Silent printing

The Neptune 3 Plus's 32-bit STM motherboard contributes greatly to its silent operation. In fact, all the axes of this 3D printer - X, Y, Z and E - have been designed to minimise unwanted noise. So you can work undisturbed, undisturbed by printing noise.

Compatible with standard materials

The Elegoo Neptune 3 Plus is a versatile 3D printer that can accommodate different types of materials commonly used in 3D printing, such as PLA, TPU andABS. This extensive compatibility means you can choose the most suitable material for each project, guaranteeing accurate, high-quality results.

Direct drive extruder

The Elegoo Neptune 3 Plus is equipped with a high-performance dual-gear direct extruder designed by Elegoo. This mechanism is capable of delivering an extrusion ratio almost three times greater (3:1) than that of conventional extruders. Thanks to this increased extrusion force, the printer is able to produce accurate prints, even with more difficult materials. What's more, the extruder is made from titanium alloy, which significantly reduces the risk of clogging and ensures a more reliable filament supply.

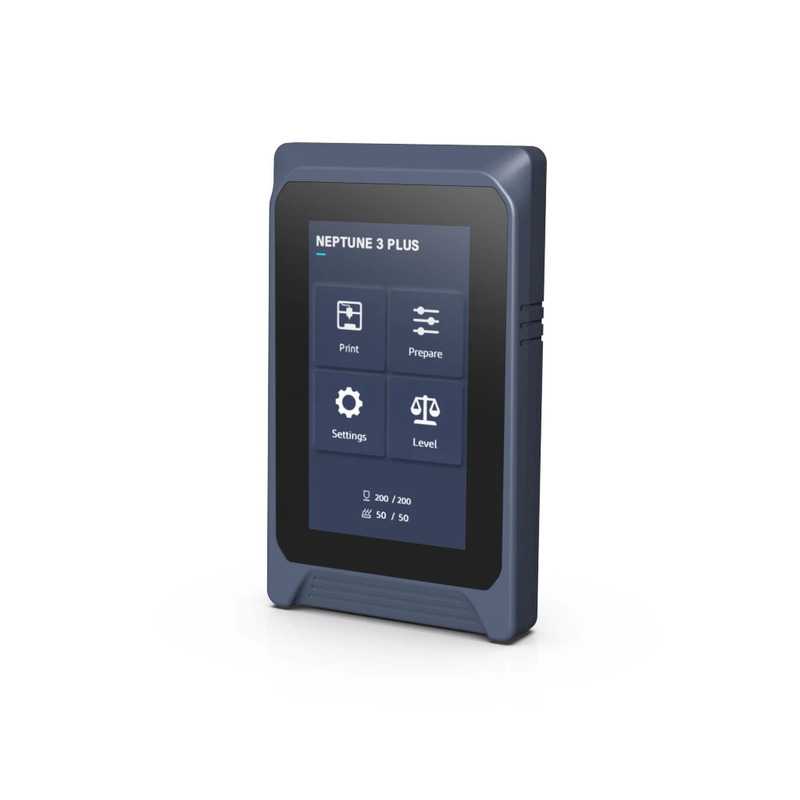

4.3-inch magnetic screen

The Neptune 3 Plus is equipped with a removable 4.3" magnetic screen that allows you to easily control the 3D printer. This screen can be attached to the base of the device or used as a remote control for added convenience. What's more, the system is available in 8 languages, including Chinese (simplified), English, Spanish, French, Italian, Russian, German and Japanese, making it accessible to an international audience.

Automatic levelling

The Neptune 3 Plus is equipped with a 49-point automatic bed levelling system, so you don't have to do any time-consuming manual levelling. Using a high-precision intelligent sensor, this 3D printer automatically adjusts the print height at different points on the heated platen at the touch of a button. This feature makes the printing process much easier and guarantees accurate, consistent results.

Cooling fan

The Neptune 3 Plus features an innovative nozzle cooling fan, which is positioned on both sides to ensure optimum heat dissipation. After printing, all fans switch off automatically to save energy, reduce noise and extend component life. This intelligent feature ensures efficient nozzle cooling and quieter, longer-lasting operation of the 3D printer.

Integrated LED lighting

The Neptune 3 Plus is equipped with a gantry-mounted LED bar that illuminates the print for optimal lighting conditions, even in dimly lit rooms. This feature allows you to easily monitor the progress of printing and achieve quality results even in low-light environments.

Flexible PEI print tray

The Neptune 3 Plus features a magnetic PEI platen with excellent adhesion and heat resistance, allowing the print to peel off easily after cooling. The 250 W heating bed heats up quickly to 100°C, enabling plastic materials to be printed at high temperatures. This practical feature ensures versatile use of the 3D printer and optimum printing results.

Our opinion of Elegoo Neptune 3 Plus

In addition to the above-mentioned features, the Neptune 3 Plus comes with print restart and filament end sensors.

If you're looking for a high-performance, high-volume 3D printer that's easy to use and reliable, the Neptune 3 Plus fromElegoo is an excellent choice.

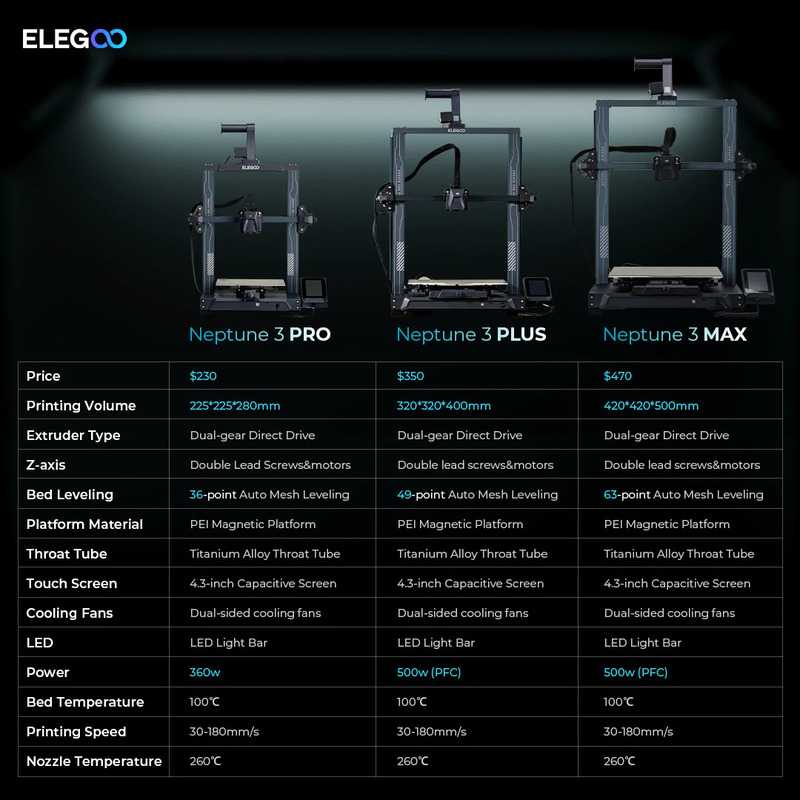

The main difference between the Elegoo Neptune 3 Pro and the Elegoo Neptune 3 Plus is the size of their print volume. The Elegoo Neptune 3 Plus has a print volume of 320 x 320 x 400 mm, which is slightly larger than that of the Elegoo Neptune 3 Pro, which has a print volume of 225 x 225 x 280 mm.

Apart from that, the two printers have similar features. They are both equipped with automatic levelling sensors and a 3.5-inch colour touch screen.
