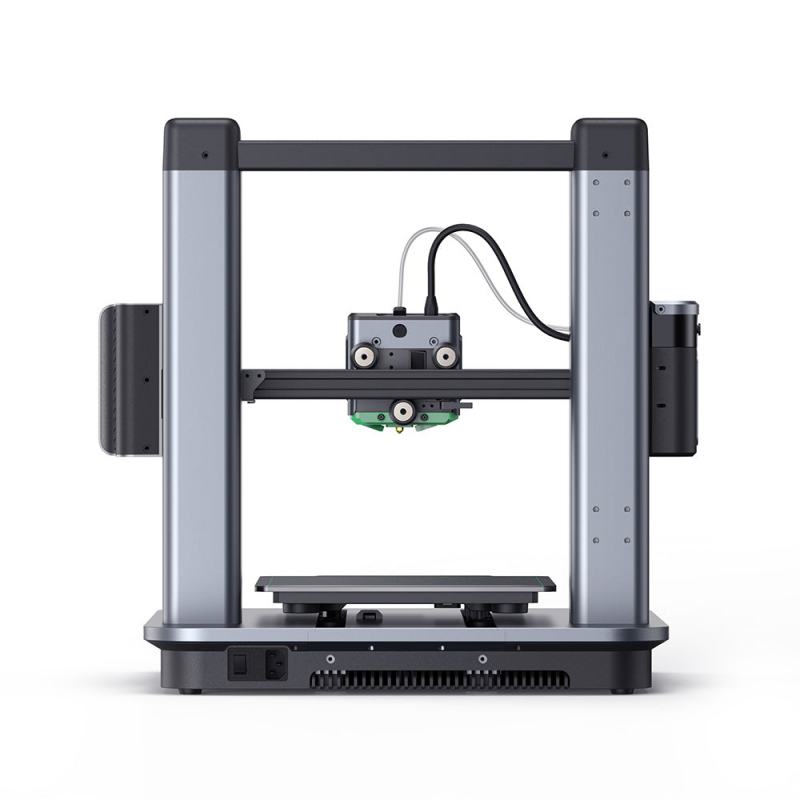

AnkerMake M5
The AnkerMake M5 is a high-speed printer with excellent precision (0.01 mm). The built-in AI recognition system keeps your prints on track. Stop waiting and let us guide you to print intelligently and quickly.
- 5 times faster printing
- 0.1mm accuracy
- Built-in AI camera monitoring
- Hub for connecting multiple devices
- Automatic levelling
- Automatic timelapses

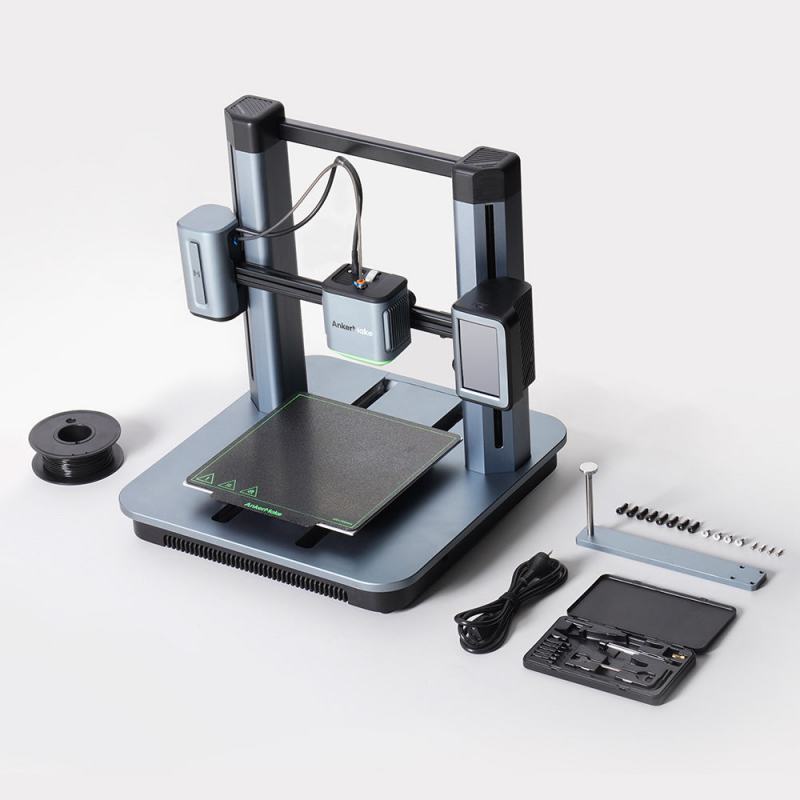

- Easy kit and assembly
- Aluminium alloy structure
- Printing volume: 235 x 235 x 250 mm.
VAT at 0%, which is €353.75 TTC including tax.
Ordered before 1:00 PM, delivered to your doorstep tomorrow!
Delivery within 48/72 hours
Order before 1pm. Same day shipping
Free delivery
Free delivery near you from €69.90
Premium support
Our teams are on hand to answer all your questions
Over 2000 products
A wide choice of products from the biggest brands
AnkerMake M5
The 3D printer from AnkerMake offers a volume of 235 x 235 x 250 mm with impressive precision and speed. The M5 from AnkerMake scored 25.5 in the Autodesk Geometry competition for the most accurate printer, beating even Prusa.
The AnkerMake M5 is a new-generation printer offering full connectivity. Connect it to Wi-Fi and it can be accessed from a computer, smartphone, tablet and even a Google or Amazon Alexa voice assistant.
AnkerMake M5 highlights
Discover the advantages of this 3D printer and what makes it such an innovative newcomer to the world of 3D printing and simple, effective desktop machines.

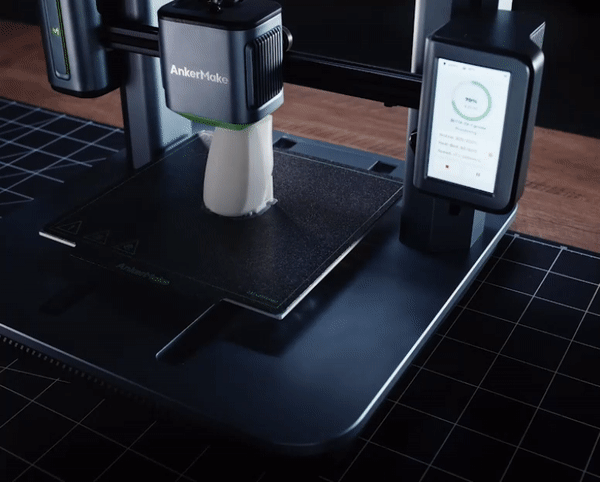

Powered by PowerBoost™
You'll achieve high precision even at high speeds thanks to PowerBoost™, which optimises energy with its Y-axis transmission system. PowerBoost™ uses a powerful stepper motor, a dual-belt drive shaft and a motion algorithm that stabilises movements for high-speed printing.

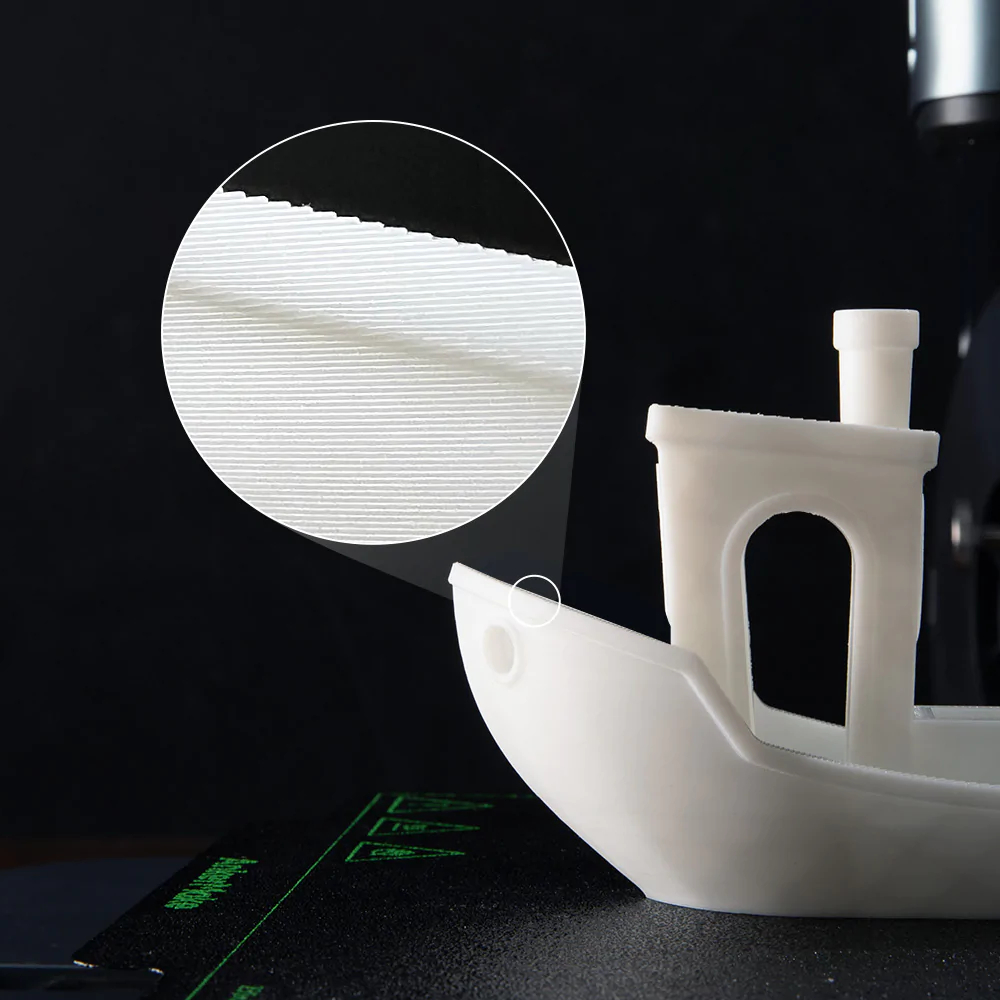

0.1mm accuracy
Never compromise on stable quality, even when printing at high speeds. The AnkerMake M5 frees you from sanding thanks to the smoothness and finish of each layer.

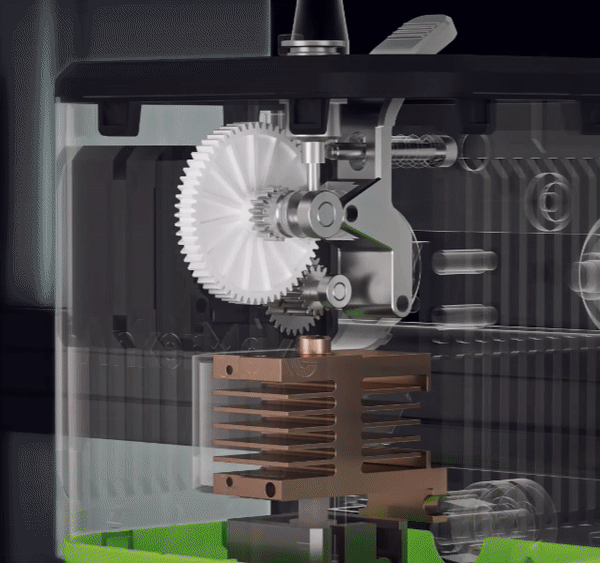

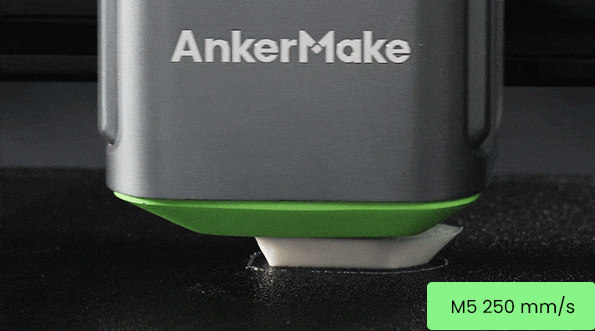

New ultra-direct extruder
With a new-generation direct-drive extruder, you can enjoy intricate detail after printing 5 times faster. The reduced distance between extruder and nozzle reduces errors and improves control for greater precision. A proven algorithm analyses and matches movement to extrusion. It has been refined by over 2,000 tests in the laboratory atAnkerMake.
Higher multi-stage gear ratio
The basis for high-speed printing begins with the high-performance gear system, with a reduction ratio of 9.37 that produces a torque of 0.8 N-m. The high torque exerts pressure on the melt chamber to make extrusion faster.

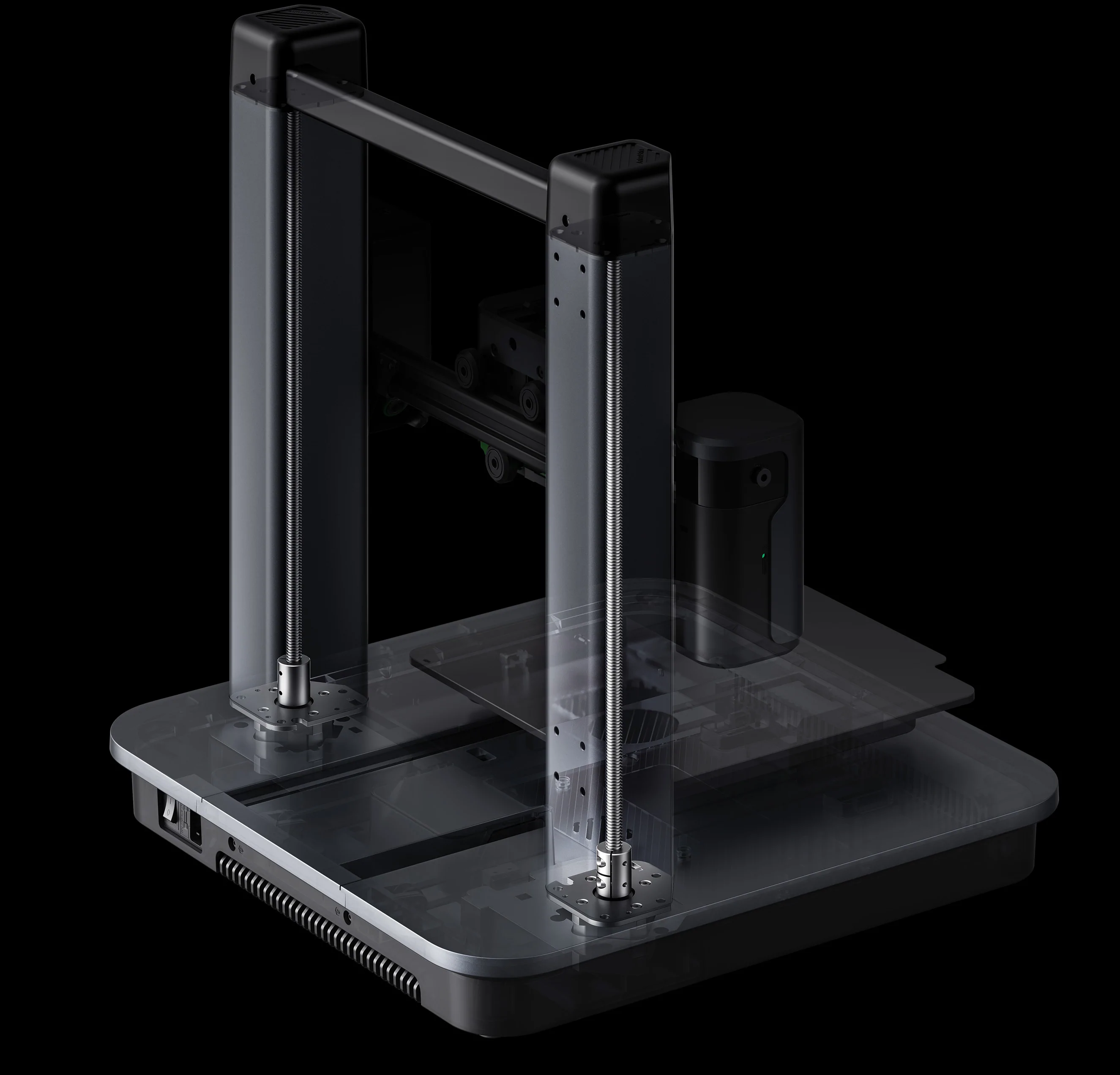

Integrated die-cast aluminium alloy
The integrated die-cast aluminium alloy structure and Z-axis design increase the weight of the base, reducing the machine's centre of gravity. This design makes printing more stable. It also reduces base installation errors, improving printer accuracy.

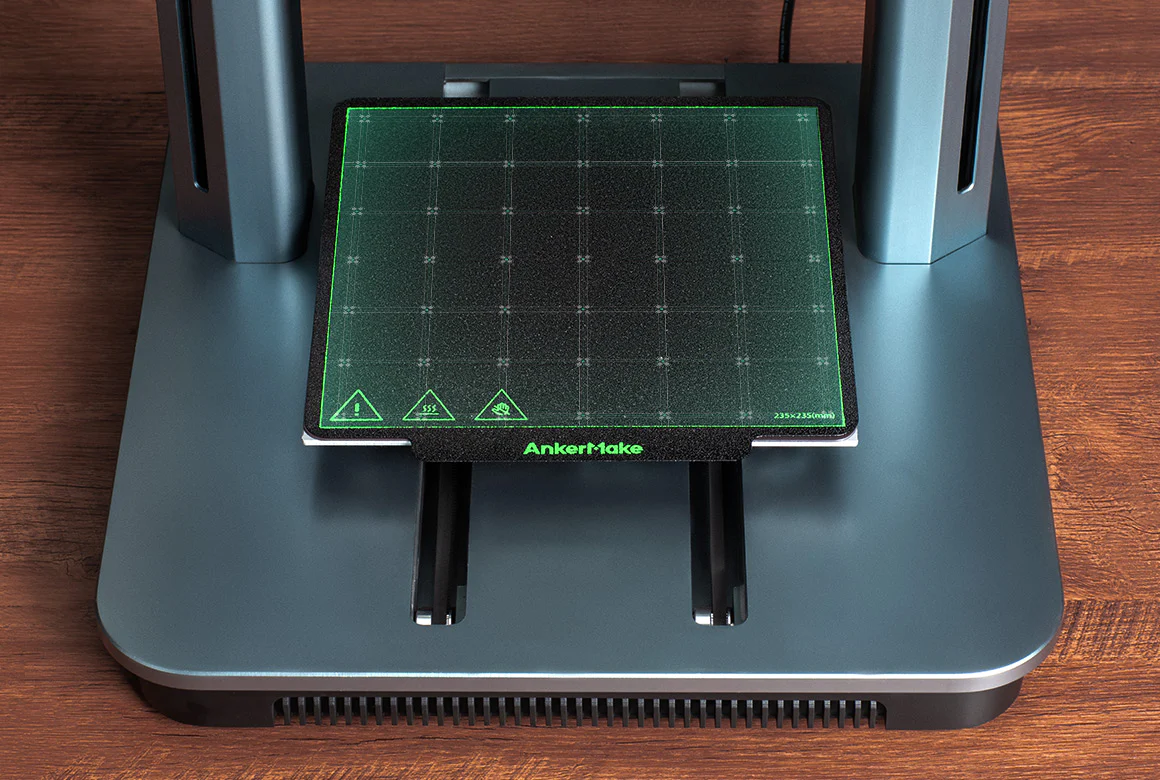

7x7 automatic levelling
Give your prints precision with 7x7 auto-levelling. Advanced algorithms calculate a virtual height map so that printing starts correctly. You only need to make adjustments by hand when replacing an important component such as the nozzle or PEI magnetic steel plate.

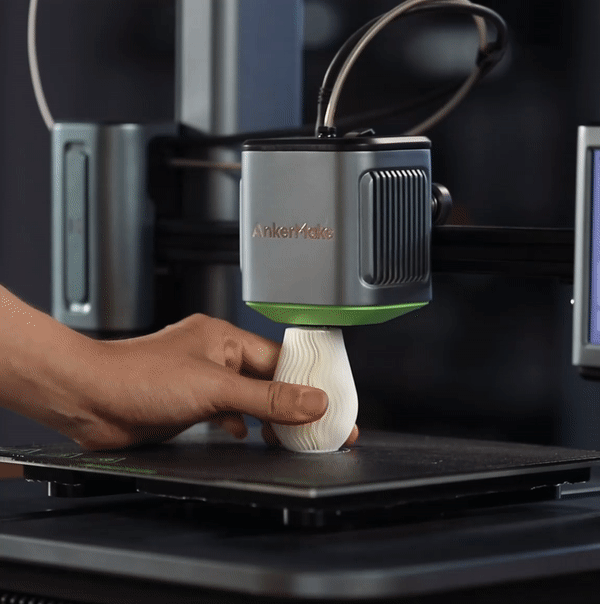

AI camera recognition system
The Slicer fromAnkerMake analyses the 3D data on the model before printing, then the AI recognition system uses the powerful XBurst processor to constantly check and compare throughout the process and detect, for example, subsequent errors.
- Spaghetti prints
- Shifted layers
- Poor adhesion of the first layer
- Nozzle jamming.
Print volume
235 x 235 x 250 mm
Layer thickness (precision)
100 microns
Maximum speed
250 mm/s
Compatible materials
PLA, ABS , PETG, Flexible, Composites
- 🎯 We collaborate with businesses.
- 📦 Stock in Europe
- 🚚 Ships within 24 hours
- 🔐 Secure payments
- 🔙 14 days to change your mind
- 📱 Need advices ? Contact technical support
Specifications for AnkerMake M5
Technologie / Produit
- Technology
- FDM
- Print volume
- 235 x 235 x 250 mm
- Layer thickness (precision)
- 100 microns
- Maximum speed
- 250 mm/s
- Compatible materials
- PLA, ABS , PETG, Flexible, Composites
- Type of product
- 3D printer
Extrusion
- Filament diameter
- 1.75 mm
- Maximum extruder temperature
- 260 °C
- Number of extruders
- 1
- Type of consumable
- Non-proprietary filament (open system)
- Type of extrusion
- Direct drive
Plateau chauffant
- Maximum plateau temperature
- 100 ºC
- Heated tray
- Yes
- Heating plate material
- PEI
- Heating plate fixing
- Magnetic
- Platen calibration
- Manuel, Automatic
Équipements spécifiques
- Resuming after an outage
- Yes
- Touch screen
- Yes
- Camera
- Yes
Logiciel
- Operating system
- Windows, Mac OSX, Linux
- Data transfer
- SD card, USB, Wifi, Cloud
