PETG-CF Carbon Forshape Industrial - 1.75mm - 500g

Ref. 3701508102391

The PETG Carbon filament in the Industrial range from Forshape is a 15% carbon-fibre filled filament. This filament is more than twice as strong as standard PETG with increased resistance to impact and heat.

PETG Carbon offers a matt finish and its fibre content makes the layers virtually invisible. This material can be used to manufacture functional parts, specific tools or finished products.

€32.90 excl. VAT

VAT at 0%, which is €32.90 TTC including tax.

Out of stock Free shipping for orders over 39.9€

À partir de 2, seulement €31.91 / unité. 3%

À partir de 5, seulement €31.26 / unité. 5%

À partir de 10, seulement €30.27 / unité. 8%

Delivery within 48/72 hours

Order before 1pm. Same day shipping

Free delivery

Free delivery near you from €69.90

Premium support

Our teams are on hand to answer all your questions

Over 2000 products

A wide choice of products from the biggest brands

PETG Carbon - Industrial technical filament

This carbon-fibre filled filament is widely used for its high technical performance and will meet the needs of demanding applications. It is known as PETG-CF which stands for "Carbon Fiber".

Thanks to its composition, PETG Carbon is twice as rigid as standard PETG. Its fibre content makes it easy to print, as the fibres limit the warping effect during printing and therefore the risk of the board coming unstuck. You'll get parts with excellent dimensional accuracy and a matt, rough finish.

This composite filament gives you very high rigidity, making it ideal for technical mechanical parts.

Why use PETG-CF Carbon?

With its 15% fibre content, Forshape 's PETG Carbon filament is the ideal material for designing technical parts and finished products. It can be found in the design of drone chassis, in the automotive and aerospace industries and more generally in fields and sectors where strength and light weight are important factors.

In the medical sector, for example, it will be used to design customised parts. The manufacture of prostheses or adapters for wheelchairs is a common application for PETG-CF (Carbon).

Strengths of carbon filament Forshape?

Shock and impact resistance: The 15% carbon fibre added to this filament doubles the rigidity of PETG and gives it enormous impact resistance.

Rough, matt appearance : The filler in this material gives it a very attractive surface once printed. This finish is often highly prized in industry.

Ease of printing: PETG Carbon adheres very well to the platen, and its composition limits the warping effects of PETG. What's more, this material doesn't warp, so you get parts with excellent dimensional accuracy.

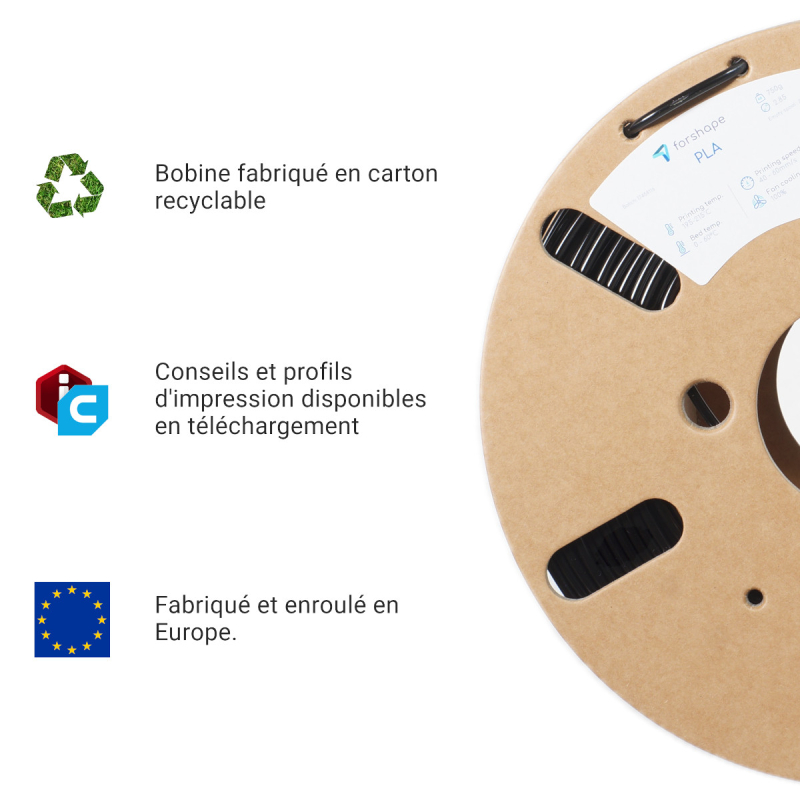

Eco-responsible: PETG-CF Forshape is sold wound on a cardboard spool that you can simply recycle after using the filament.

Printing tips

PETG Forshape Carbone is a filament compatible with all 3D printers equipped with a 1.75mm extrusion and compatible with the recommendations for use below.

This filament requires an extrusion temperature of between 230 and 255°C. A heating plate that will enable you to obtain a constant plate temperature of between 70 and 90°C.

All additional information and printing tips are available in the technical data sheet that can be downloaded from this page.

PETG Carbon is an abrasive filament, so we recommend using a reinforced nozzle with a minimum diameter of 0.5mm.

  • 🎯 We collaborate with businesses.
  • 📦 Stock in Europe
  • 🚚 Ships within 24 hours
  • 🔐 Secure payments
  • 🔙 14 days to change your mind
  • 📱 Need advices ? Contact technical support

Specifications for PETG-CF Carbon Forshape Industrial - 1.75mm - 500g

Technologie / Produit

Technology
FDM
Material
PETG
Visual aspect
Opaque, Mat Carbone
Bio-sourced
No
Diameter
1.75 mm
Sensitivity to humidity
Low
Application
Aesthetics, Prototyping, Production, Functional part
Odour
No
Harmful
Yes
Level of difficulty
Novice
Brand
Forshape
Type of product
3D Filament
Colour
Black
Net weight
500 g

Valeurs techniques

Deflection temperature under load (1.8 MPa)
75 °C
Temperature VICAT
75 °C
Izod
9 kJ/m² of energy
Tensile modulus
9930 Mpa
Tensile yield strength
93 MPa
Maximum elastic elongation
2.7
Maximum elongation at break
3.5 %
Density
1.31 g/cm3

Extrusion

Nozzle type
Tempered steel
Type of consumable
Non-proprietary filament (open system)
Min. plateau temperature
70 °C
Max. tray temperature
90 °C
Min. extrusion temperature
235 °C
Max. extrusion temperature
250 °C
Min. speed
30 mm/s
Max. speed
60 mm/s
Minimum nozzle diameter
0.5 mm
Bowden compatibility
Yes
Warping sensitivity
Low
AMS compatible
No

Équipements spécifiques

Closed printing enclosure
No
Filtration
Yes

Installation / Prérequis

Type
Filament on spool
Box supplied
Yes
Coil material
Cardboard
