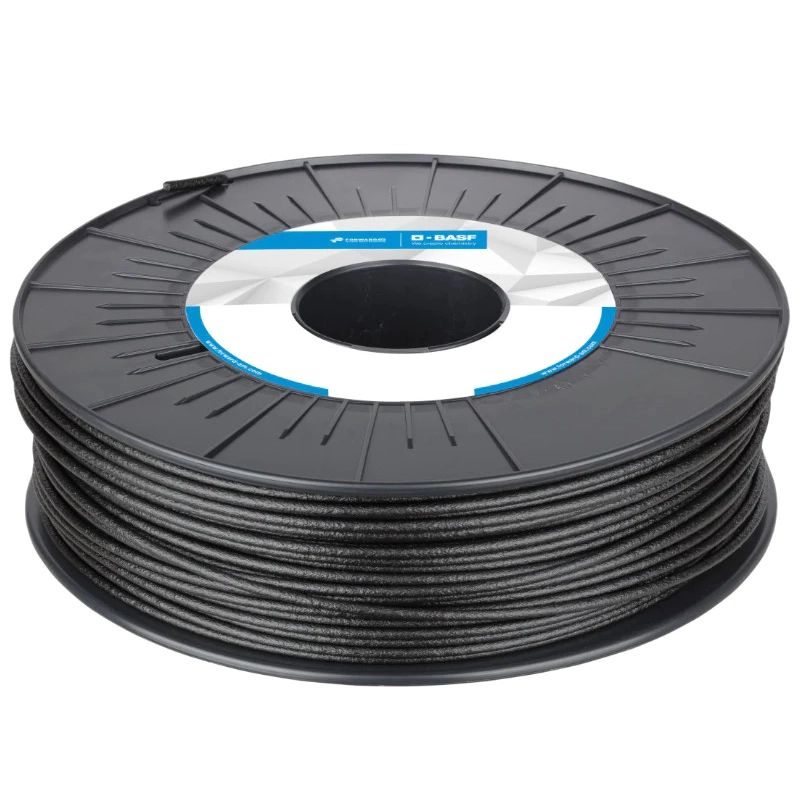

Ultrafuse PET CF15 BASF - 1.75mm - 750 g

Ref. PCF-0350a075

The Ultrafuse PET-CF15 filament combines ease of processing and very low moisture absorption with excellent strength and rigidity at an affordable cost. UltrafusepET CF15 is a polyethylene reinforced with 15% carbon fibre.

  • Strong, rigid components
  • Easy to process
  • Very low moisture absorption
  • Heat resistant up to 108°C
€67.15 excl. VAT

VAT at 0%, which is €67.15 TTC including tax.

Out of stock Free shipping

À partir de 2, seulement €65.14 / unité. 3%

À partir de 5, seulement €63.79 / unité. 5%

À partir de 10, seulement €61.78 / unité. 8%

Delivery within 48/72 hours

Order before 1pm. Same day shipping

Free delivery

Free delivery near you from €69.90

Premium support

Our teams are on hand to answer all your questions

Over 2000 products

A wide choice of products from the biggest brands

Use of the Ultrafuse PET CF15 filament

The Ultrafuse® PET CF15 filament is an engineering filament optimised to enable users to develop new 3D printing applications with higher requirements. With its superior heat resistance, high strength and stiffness, this filament is suitable for a wide range of demanding industrial applications. Its high dimensional stability and very low moisture absorption make it a perfect solution for applications in humid operating environments.

This engineered filament is easier to process than other carbon fibre reinforced filaments. Users will be able to 3D print new components that remain fully functional under higher mechanical and thermal loads.

It works in any filament 3D printer equipped with a reinforced nozzle.

In addition, Ultrafuse PET CF15 is compatible with BVOH, the water-soluble carrier material and HIPS, making it possible to print complex geometries that work in harsh environments.

Ultrafuse PET-CF15: key strengths

  • Solid, rigid components
  • Easy to process
  • Very low moisture absorption
  • Heat resistant up to 108°C
  • High dimensional stability
  • Compatible with BVOH and HIPS for the substrate
  • Excellent surface finish

Our recommendations for use with BASF Ultrafuse PET CF15

BASF 's Ultrafuse PET CF15 filament is easy to print. Youneed a 3D printer that can extrude the filament at between 250 and 270°C at a speed of between30 and 80mm/s. The platen must be heated to between 65 and 85°C. BASF recommends using a light layer of glue to protect the platen during printing.

  • 🎯 We collaborate with businesses.
  • 📦 Stock in Europe
  • 🚚 Ships within 24 hours
  • 🔐 Secure payments
  • 🔙 14 days to change your mind
  • 📱 Need advices ? Contact technical support

Specifications for Ultrafuse PET CF15 BASF - 1.75mm - 750 g

Technologie / Produit

Material
PETG
Sensitivity to humidity
Low
Application
Production, Large format, Functional part, Extreme
Type of product
3D Filament
Colour
Black
Net weight
750 g

Valeurs techniques

Deflection temperature under load (0.45 MPa)
107 °C
Deflection temperature under load (1.8 MPa)
80 °C
Charpy
5.5 kJ/m² of energy, 29 kJ/m² of energy
Composite
Carbon
Percentage of fibre
15 %
Flexural modulus
7350 MPa
Density
1.38 g/cm3

Extrusion

Filament diameter
1.75 mm
Nozzle type
Steel
Nozzle diameter
0.6 mm, 0.8 mm
Min. speed
40 mm/s
Max. speed
80 mm/s
