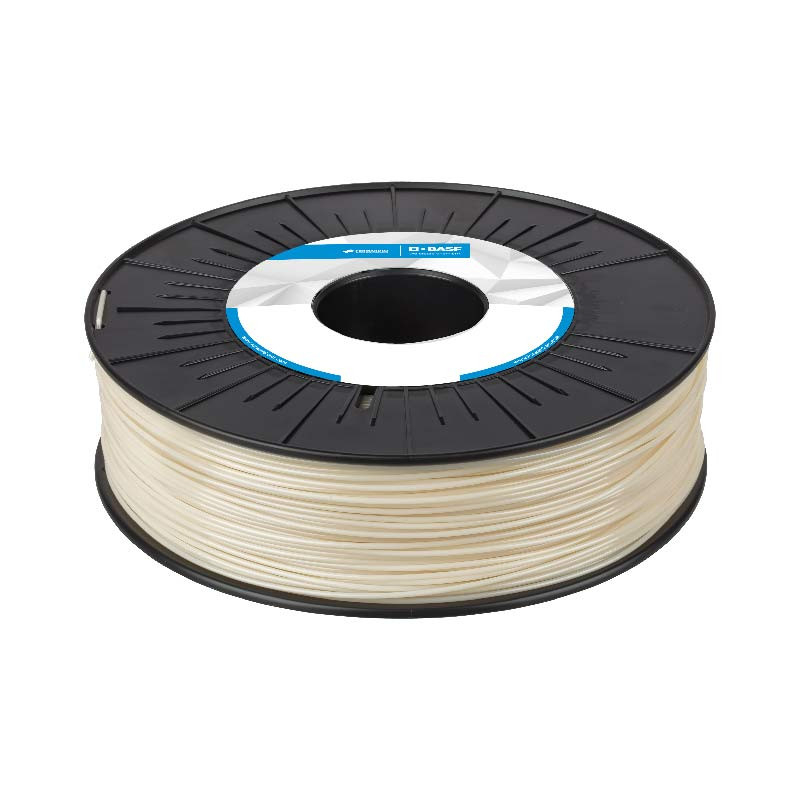

    Ultrafuse ABS Fusion+ BASF - 1.75mm - 750 g - Natural

    Ref. ABSF-0201a075

    The Ultrafuse ABS Fusion+ Naturel filament is a ABS filament with very high performance for demanding uses. The very high manufacturing quality ofABS Fusion+ Natural from BASF Forward AM makes this material a professional qualityfilament.

    Ultrafuse ABS Fusion+ Naturel has been developed by the chemical industry giant BASF in collaboration with Polyscope Polymers. It is highly resistant to warping.

    €22.90 excl. VAT

    VAT at 0%, which is €22.90 TTC including tax.

    In Stock Free shipping for orders over 69.9€

    Ordered before 1:00 PM, delivered to your doorstep tomorrow!

    À partir de 2, seulement €22.21 / unité. 3%

    À partir de 5, seulement €21.76 / unité. 5%

    À partir de 10, seulement €21.07 / unité. 8%

    Delivery within 48/72 hours

    Order before 1pm. Same day shipping

    Free delivery

    Free delivery near you from €69.90

    Premium support

    Our teams are on hand to answer all your questions

    Over 2000 products

    A wide choice of products from the biggest brands

    Ultrafuse ABS Fusion+ Natural: The easy-to-print engineering material

    The Ultrafuse ABS Fusion+ Natural filament designed by BASF with the aim of simplifying engineering applications by providing professionals with an improved, easy-to-print ABS filament. ABS filament is often criticised for being too complex to print, with BASF Ultrafuse Fusion+ Naturel you can achieve a high success rate when printing 3D models.

    Ultrafuse ABS Fusion+ Naturel fits perfectly into the industrial spectrum by offering exceptional mechanical properties. Ideal for the production and design of technical functional parts.

    The strengths ofUltrafuse ABS Fusion+ Naturel

    Mechanical strength: Its blend of ABS BASF and SMA(Styrene Maleic Anhydride) gives it excellent mechanical and thermal properties, as well as very high dimensional accuracy for 3D printed parts.

    Easy to print: Its high quality means it can be printed right on the heated plate without the use of third-party adhesives.

    Compatible with soluble supports: Ultrafuse ABS Fusion+ Naturel filament is also compatible with soluble supports, enabling you to manufacture complex parts using double extrusion.

    BASF Ultrafuse ABS Fusion+: Advice on use

    Ultrafuse Printing BASF ABS Fusion+ Natural filament is easy. You need a 3D printer that can extrude the filament at between 240 and 260°C at a speed of between 40 and 80mm/s. The platen must be heated to between 100 and 120°C. BASF recommends using a light coat of spray to protect the platen during printing.

    • 🎯 We collaborate with businesses.
    • 📦 Stock in Europe
    • 🚚 Ships within 24 hours
    • 🔐 Secure payments
    • 🔙 14 days to change your mind
    • 📱 Need advices ? Contact technical support

    Specifications for Ultrafuse ABS Fusion+ BASF - 1.75mm - 750 g - Natural

    Technologie / Produit

    Technology
    FDM
    Material
    ABS
    Visual aspect
    Opaque, Mat, Smooth alcohol
    Diameter
    1.75 mm
    Sensitivity to humidity
    Low
    Application
    Prototyping, Production, Functional part
    Odour
    Yes
    Harmful
    Yes
    Level of difficulty
    Intermediate
    Brand
    BASF
    Type of product
    3D Filament
    Colour
    Natural
    Net weight
    750 g

    Valeurs techniques

    Glass transition temperature
    114 °C
    Deflection temperature under load (0.45 MPa)
    91 °C
    Deflection temperature under load (1.8 MPa)
    71 °C
    Izod
    72 kJ/m² of energy
    Resistors
    Mechanical engineering
    Tensile modulus
    1379 Mpa
    Flexural modulus
    1406 MPa
    Tensile yield strength
    29 MPa, 29.5
    Tensile strength
    48 MPa
    Maximum elongation at break
    10.9 %
    Density
    1.07 g/cm3

    Extrusion

    Nozzle type
    Brass
    Type of consumable
    Non-proprietary filament (open system)
    Min. plateau temperature
    100 °C
    Max. tray temperature
    120 °C
    Min. extrusion temperature
    240 °C
    Max. extrusion temperature
    260 °C
    Min. speed
    40 mm/s
    Max. speed
    80 mm/s
    Minimum nozzle diameter
    0.4 mm
    Bowden compatibility
    Yes
    Warping sensitivity
    Low
    AMS compatible
    No

    Équipements spécifiques

    Closed printing enclosure
    No
    Filtration
    HEPA, Coal

    Installation / Prérequis

    Type
    Filament on spool
    Box supplied
    Yes
    Coil material
    Plastic
