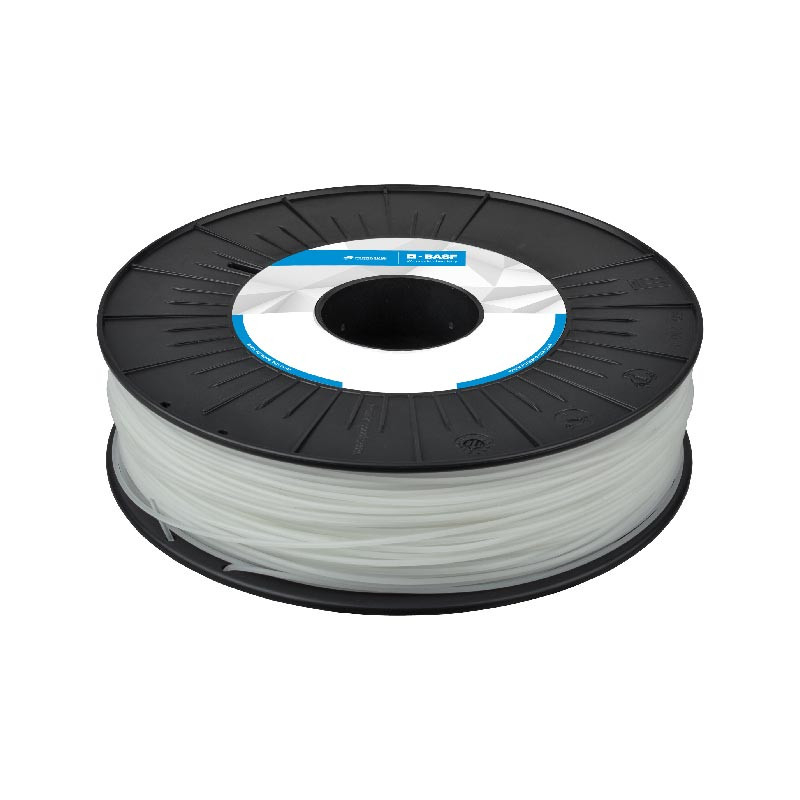

Ultrafuse PA BASF - 1.75mm - 750g - Naturel
    Ultrafuse PA BASF
    Ultrafuse PA BASF - 1.75mm - 750g - Naturel
    Ultrafuse PA BASF

    Ultrafuse PA BASF - 2.85mm - 750g - Natural

    Ref. PA-4501b075

    Ultrafuse PA filament is a very high quality Nylon Copolyamide 6/66 developed by BASF from its Ultramid® range. The Ultrafuse PA filament is a professional grade nylon that can be used in many demanding technical applications. It is characterised by its very high mechanical strength, rigidity and thermal stability.

    €49.90 excl. VAT

    VAT at 0%, which is €49.90 TTC including tax.

    In Stock Free shipping for orders over 69.9€

    Ordered before 1:00 PM, delivered to your doorstep tomorrow!

    À partir de 2, seulement €48.40 / unité. 3%

    À partir de 5, seulement €47.41 / unité. 5%

    À partir de 10, seulement €45.91 / unité. 8%

    Delivery within 48/72 hours

    Order before 1pm. Same day shipping

    Free delivery

    Free delivery near you from €69.90

    Premium support

    Our teams are on hand to answer all your questions

    Over 2000 products

    A wide choice of products from the biggest brands

    Ultrafuse PA a very high quality Nylon 6/66

    The Ultrafuse PA filament is the result of BASF 's work to integrateUltramid® into the world of 3D printing. An alloy of PA6 and PA66 of intermediate viscosity that offers very interesting mechanical and thermal properties.

    The Ultrafuse PA filament offersgreater resistance to impact and wear than standard PA6 or PA66. It is ideal for the manufacture of industrial parts in the engineering, automotive and aerospace industries, to name but a few.

    The strengths of BASF Ultrafuse PA

    Mechanical strength:Ultrafuse PA has very high mechanical strength and is highly resistant to impact, wear and deformation.

    High rigidity material: You can print 3D parts and semi-flexible models or very rigid parts depending on the thickness of the part printed.

    Low melting temperature: The melting temperature of this Ultrafuse PA filament is relatively low, making it printable on many professional 3D printers.

    Printing tips forUltrafuse PA

    The Ultrafuse PA filament is a Nylon PA6/66 which is relatively easy to print. It will require a printer capable of extruding filament at a temperature of 220 to 250°Cand a heating plate capable of reaching 120°C. We recommend that you use a glue to increase the adhesion of the Ultrafuse PA filament to the platen during printing.

    Ultrafuse PA filament is very sensitive to humidity and we recommend that you keep it in an oven such as a hot plate Polybox and dry it thoroughly if necessary.

    • 🎯 We collaborate with businesses.
    • 📦 Stock in Europe
    • 🚚 Ships within 24 hours
    • 🔐 Secure payments
    • 🔙 14 days to change your mind
    • 📱 Need advices ? Contact technical support

    Specifications for Ultrafuse PA BASF - 2.85mm - 750g - Natural

    Technologie / Produit

    Technology
    FDM
    Material
    PA
    Visual aspect
    Opaque, Brilliant
    Diameter
    2.85 mm
    Sensitivity to humidity
    Strong
    Application
    Prototyping, Functional part
    Odour
    Yes
    Harmful
    Yes
    Level of difficulty
    Expert
    Brand
    BASF
    Type of product
    3D Filament
    Colour
    Natural
    Net weight
    750 g

    Valeurs techniques

    Glass transition temperature
    49 °C
    Deflection temperature under load (0.45 MPa)
    135 °C
    Deflection temperature under load (1.8 MPa)
    65 °C
    Temperature VICAT
    172 °C
    Izod
    45 kJ/m² of energy
    Charpy
    29 kJ/m² of energy
    Resistors
    Mechanical engineering, Wear and tear
    Tensile modulus
    2419 Mpa
    Flexural modulus
    2051 Mpa
    Tensile yield strength
    62 MPa
    Maximum elongation at break
    9.6 %
    Density
    1.11 g/cm3

    Extrusion

    Nozzle type
    Brass
    Type of consumable
    Non-proprietary filament (open system)
    Min. plateau temperature
    90 °C
    Max. tray temperature
    120 °C
    Min. extrusion temperature
    220 °C
    Max. extrusion temperature
    250 °C
    Min. speed
    30 mm/s
    Max. speed
    60 mm/s
    Minimum nozzle diameter
    0.2 mm
    Bowden compatibility
    Yes
    Warping sensitivity
    Strong
    AMS compatible
    No

    Équipements spécifiques

    Closed printing enclosure
    Yes
    Filtration
    HEPA, Coal

    Installation / Prérequis

    Type
    Filament on spool
    Box supplied
    Yes
    Coil material
    Plastic
