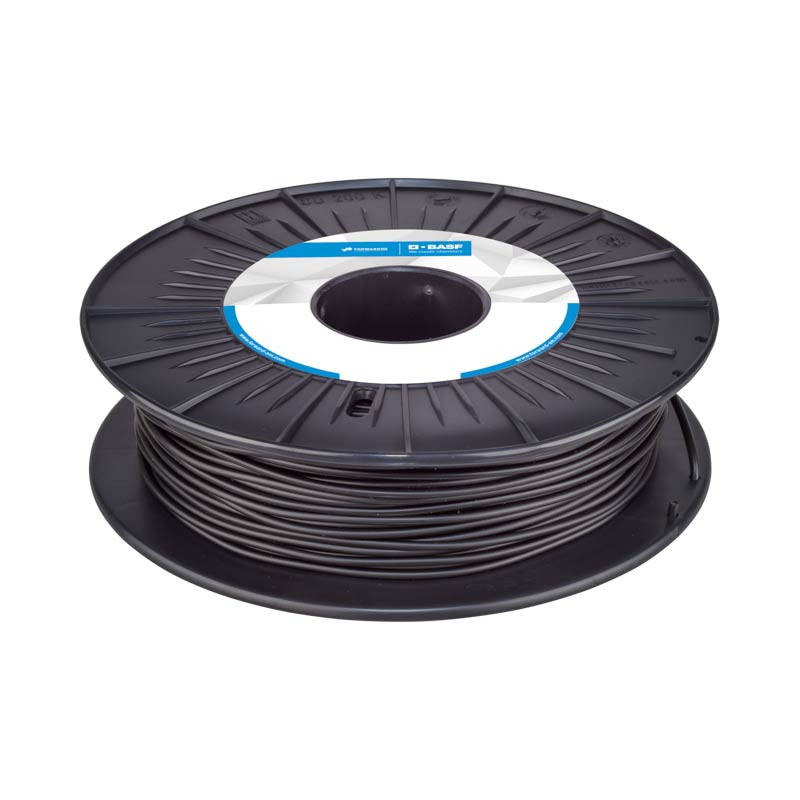

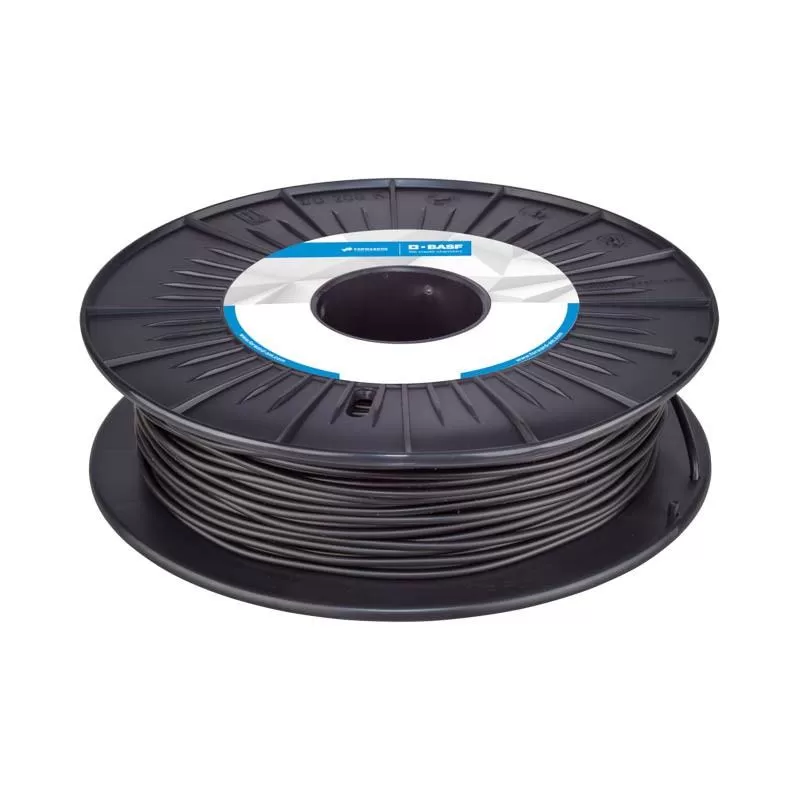

Ultrafuse TPC 45D BASF - 1.75mm - 500g - Noir
Ultrafuse TPC 45D BASF - 1.75mm - 500g - Noir

Ultrafuse TPC 45D BASF - 2.85mm - 500g - Black

Ref. FL45-2008b050

The Ultrafuse TPC 45D filament from BASF is a flexible filament that can stretch by more than 300%. Its Copolyester-based composition sets it apart from traditional TPU both in terms of its feel (softer) and its properties.

BASF Ultrafuse TPC 45D has high elastic performance and very strong adhesion at the interlayer bond.

€29.71 excl. VAT

VAT at 0%, which is €29.71 TTC including tax.

In Stock Free shipping for orders over 39.9€

Ordered before 1:00 PM, delivered to your doorstep tomorrow!

À partir de 2, seulement €28.82 / unité. 3%

À partir de 5, seulement €28.22 / unité. 5%

À partir de 10, seulement €27.33 / unité. 8%

Delivery within 48/72 hours

Order before 1pm. Same day shipping

Free delivery

Free delivery near you from €69.90

Premium support

Our teams are on hand to answer all your questions

Over 2000 products

A wide choice of products from the biggest brands

Ultrafuse TPC 45D: High elastic properties

The main attraction of this BASF Ultrafuse TPC 45D filament is its rubber-like composition. This filament is a thermoplastic elastomer copolyester (TPE-C) which is derived from rapeseed oil and combines the best properties of elastomers and polyesters.

The Ultrafuse TPC-45D filament has very strong adhesion of the layers along the Z axis, offering extreme resistance to stretching even in the direction of the layers.

The strengths of BASF Ultrafuse TPC 45D

Flexible: This Ultrafuse TPC 45D filament is perfect for use with 3D parts and models that need to be extremely flexible and need to be bent often.

Impact resistance: The high elasticity of the Ultrafuse TPC 45D filament gives it mechanical properties that mean it suffers less from deformation caused by repeated impacts.

UV resistance: Ultrafuse TPC 45D is UV resistant.

Printing the Ultrafuse TPC 45D filament correctly

First of all, we advise you to print this Ultrafuse TPC 45D filament on a printer equipped with direct drive extrusion to facilitate and improve the printing of this technical and flexible filament. This filament will print perfectly with an extrusion temperature of between 220 and240°C, the plateau temperature needing only be around 20°C.

A slow print speed of between 20 and 40mm/s is recommended, as well as the use of an adhesion sheet at PP to optimise the adhesion of this material to the platen.

  • 🎯 We collaborate with businesses.
  • 📦 Stock in Europe
  • 🚚 Ships within 24 hours
  • 🔐 Secure payments
  • 🔙 14 days to change your mind
  • 📱 Need advices ? Contact technical support

Specifications for Ultrafuse TPC 45D BASF - 2.85mm - 500g - Black

Technologie / Produit

Technology
FDM
Material
Flexible
Visual aspect
Opaque
Bio-sourced
Yes
Diameter
2.85 mm
Sensitivity to humidity
Strong
Application
Prototyping, Functional part
Odour
Yes
Harmful
Yes
Level of difficulty
Intermediate
Brand
BASF
Type of product
3D Filament
Colour
Black
Net weight
500 g

Valeurs techniques

Glass transition temperature
-35 °C, -35
Charpy
N/A
Resistors
Mechanical engineering
Density
1.15 g/cm3
Shore hardness
45 D

Extrusion

Nozzle type
Brass
Type of consumable
Non-proprietary filament (open system)
Min. plateau temperature
20 °C
Max. tray temperature
60 °C
Min. extrusion temperature
220 °C
Max. extrusion temperature
240 °C
Min. speed
20 mm/s
Max. speed
50 mm/s
Minimum nozzle diameter
0.4 mm
Bowden compatibility
Yes
Warping sensitivity
Low
AMS compatible
No

Équipements spécifiques

Closed printing enclosure
No
Filtration
HEPA, Coal

Installation / Prérequis

Type
Filament on spool
Box supplied
Yes
Coil material
Plastic
